RGL stainless steel with large green dome PUSH TO EXIT button

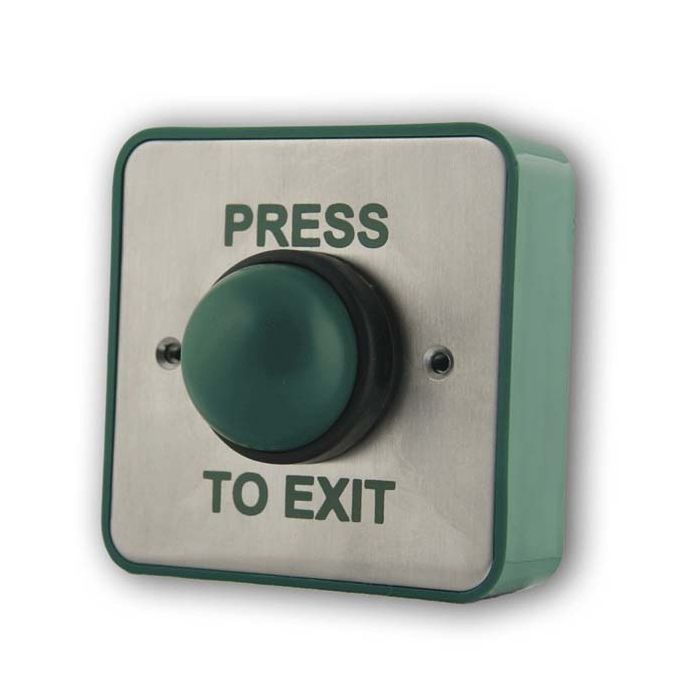

RGL EBGB02PTE Green Dome Press To Exit Button

The RGL EBGB02PTE is a robust green dome request to exit button built for demanding access control environments. Featuring an all-plastic large green dome on a 2mm stainless steel faceplate, this IP66-rated button is suitable for both internal and external installations. The momentary-action switch delivers double pole N/O and N/C contacts rated at 4A @ 30V AC/DC, with silver contacts ensuring reliable switching across more than 1,000,000 mechanical operations.

Supplied with a high impact plastic surface back box, the unit can also be flush fitted onto a standard back box using the 60mm fixing hole centres. Anti-rotational mounting prevents the faceplate from twisting during use, and security screws with allen key are included to deter tampering. The easy-clean surface makes it well suited to hospitals, apartment blocks, commercial premises and other high-traffic areas.

Key Features

• All-plastic large green dome button with momentary operation
• IP66 rated for internal or external use
• Double pole N/O - N/C voltage free contacts
• 4A contact rating @ 30V AC/DC
• 2mm stainless steel faceplate with wear resistant legend
• Anti-rotational mounting with 60mm fixing hole centres
• Surface or flush fitting onto standard back box
• Security screws (allen key type) included
• Greater than 1,000,000 mechanical operating life
• Easy clean surface for sensitive and public areas

Dimensions

85 x 85 x 32 (hwd mm)

Technical Specifications

• Contact rating: 4A @ 30V AC/DC
• Contacts: Double pole N/O - N/C
• Contact material: Silver
• Operating temperature: -20 to +60 degrees C
• Operating travel: 2mm
• Contact resistance: 10m Ohm max
• Ingress protection: IP66
• Mechanical life: 1,000,000 cycles
• Weight: 248g boxed / 200g unboxed
