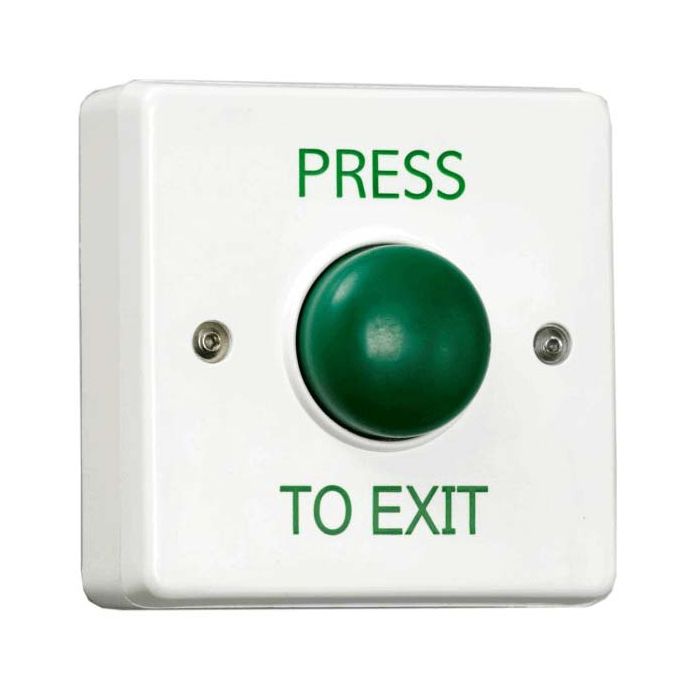

RGL white plastic surface mounted, green dome PRESS TO EXIT button

RGL EBGB01P/PTE Plastic Green Dome PRESS TO EXIT Button

The RGL EBGB01P/PTE is a green dome press to exit button built into a white high impact plastic back box. Featuring momentary operation and wear resistant etched lettering, this unit is designed for over one million operations. The easy clean surface makes it well suited to public areas with high footfall. Suitable for internal use only, it can be surface or flush mounted onto a standard back box.

Key Features

• All plastic large green dome button
• Momentary operation
• Surface or flush fitting as standard
• High impact plastic back box included
• Wear resistant etched PRESS TO EXIT legend
• Easy clean surface for general and sensitive areas
• Security screws with allen key included
• Screw footprint for flush fitting onto standard back box
• Internal use only

Technical Specifications

• Contacts: Double pole NO/NC
• Rating: 4 Amp contact @ 30V AC/DC
• Operating life: Greater than 1,000,000 mechanical operations

Dimensions

85 x 85 x 28 (hwd mm)
