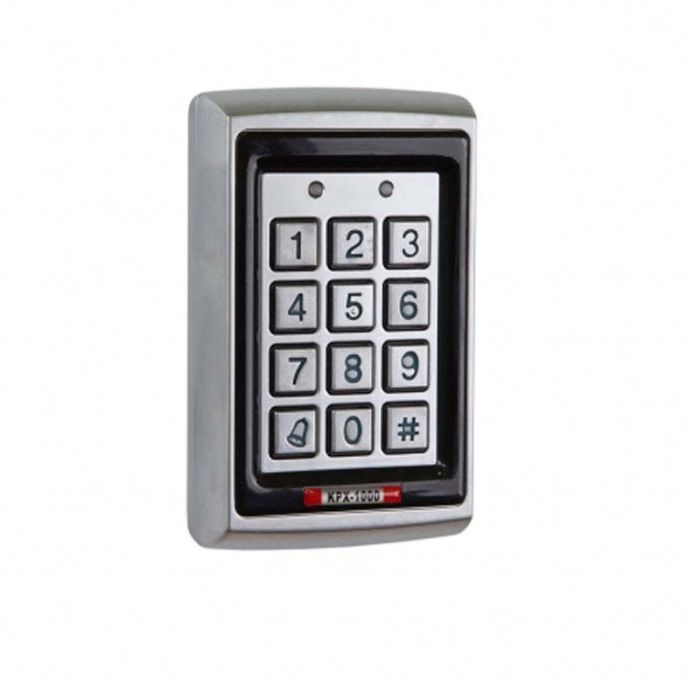

RGL KPX1000 Standalone Access Keypad with Built-In Proximity Reader

The RGL KPX1000 is a standalone surface mounted access control keypad with an integrated EM proximity reader, housed in a zinc alloy electroplated casing for vandal resistance. Supporting up to 500 unique users via keypad code or proximity fob/card, the unit can be fully programmed from the keypad itself. It features dual relay outputs with individually programmable and adjustable output timers on both lock and auxiliary channels, plus a built-in door bell facility. The selectable backlit keys and audio key operation provide clear feedback during use. Supplied with 5 x KP-FOB-GY proximity fobs for immediate deployment. The KPX1000 is designed for internal use as standard. For external installations, the separately available RAINSHIELD accessory is required to achieve IP65 protection. The PCB is conformal coated for additional environmental resilience. Compatible with 125 kHz EM cards and fobs.

Key Features

• Up to 500 unique users via code or proximity
• Built-in 125 kHz EM proximity reader
• 4-digit PIN code entry
• Dual relay outputs with adjustable timers
• Door bell facility
• Audio key operation with selectable backlight
• Zinc alloy electroplated vandal resistant casing
• PCB conformal coated
• 5 x KP-FOB-GY fobs included
• External use requires RAINSHIELD accessory

Technical Specifications

• Operating voltage: 12 VDC
• Relay outputs: 2 (3 A at 30 VDC each)
• Max users: 500
• PIN length: 4 digit
• Proximity frequency: 125 kHz EM
• Mounting: surface
• IP rating: IP65 (with RAINSHIELD)
• Weight (boxed): 526 g
• Weight (unboxed): 418 g

Dimensions

• 120 x 76 x 25 (hwd mm)
