Aiphone IX-SS | 1 Button S/S Audio Flush IP Panel For IX Series

Aiphone IX-SS | 1 Button S/S Audio Flush IP Panel For IX Series (2 Gang)

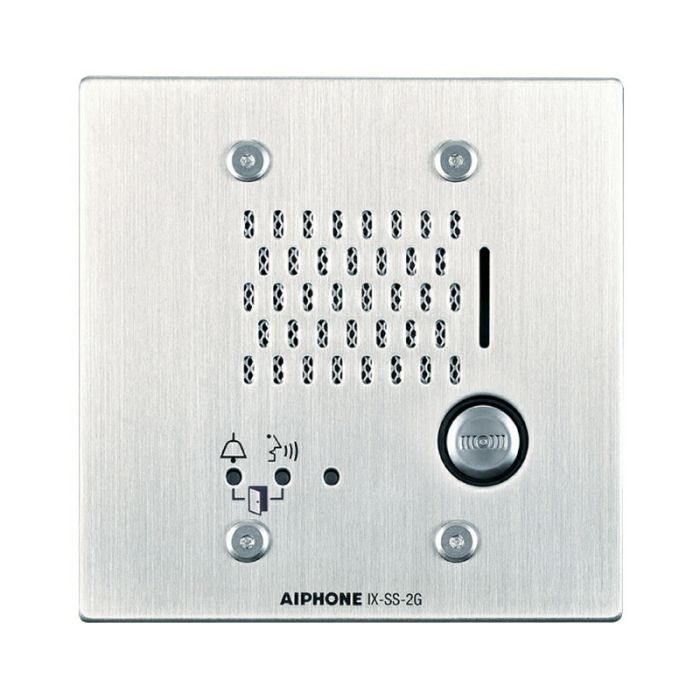

Flush mounted one button stainless steel audio panel with IP capability for the IX Series

The new IX Series enables mutual communication between an infinite number of door / master stations with no distance limitations. Reduce costs as no server is required to build a system.

Utilizing an existing IP infrastructure, IX System can be integrated with Video Management Systems, Access Control Systems, and Network Camera Systems, etc. Combining security components saves time and resources during set-up and training. Moreover, IX System can be integrated with IP-PBX, which enables the IX System to be used as a part of your internal telephone network.

Video from door stations can be monitored and recorded with third-party VMS / NVR systems. Enhance security level for all types of applications.

Features:

• Directly connectable to an IP network.
• Calling up to 20 pre-programmed stations simultaneously.
• Calling
• Group Call: Make an outgoing call to all stations that belong to the selected group.
• Contact Input Call: Make an outgoing call to all stations that belong to the selected contact input call group.
• Call response function.
• Receive paging.
• Send e-mails / schedule-linked message.
• Power Supply: PoE.

• IP65-rated.
• IK08-rated.

Technical Specifications:

• Power Source: PoE IEEE802.3af / at Class 0.
• Type of Communication: Hands-free
• Mounting: Flush.
• Material: Staineless steel.
• Input/Output:
• Contact Input: x1
• Relay Output: x1

Dimensions:

• 120 x 120 x 54.2 (hwd mm)
