SRS Surface Mount White Door Retaining Magent, 12Vdc
£78.62
£65.52
SKU
GD870S-12
- This product is available to order. The lead time is normally 2 – 4 working days.
- An accurate despatch date will be confirmed with you once order is received by our sales team (during office hours).
Free Delivery on this product

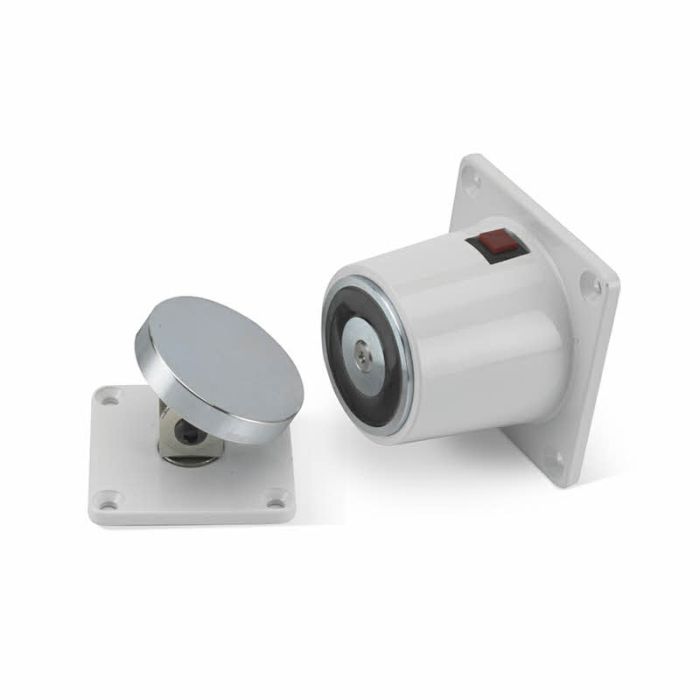

SRS GD870S-12 Door Retaining Magnet with White Powder-Coated Finish and suitable for Surface Mounting. Operating Voltage 12Vdc
SRS GD830S-12 Surface White Powder-Coated Door Retaining Magent, 12Vdc
This door retainer is suitable for large scale buildings such as hospitals, hotels and public buildings. The door holder is designed for surface mounting into the wall and comes with pre-drilled holes on both sides for easier installation. The electromagnetic door holder is a fail-safe unit which automatically cuts off the power and releases the door when the fire system detects a fire. The door can be manually released by pressing the override switch.
Features:
- White powder-coat finish
- Holding force up to 80lbs (36kg)
- Fire tested: EN1155
- Over-ride switch
- Surface mount
Technical Specifictions:
- Operating voltage 12Vdc
- Voltage tolerance: ±15%
- Current draw: 125mA at 12Vdc, 60mA at 24Vdc
- Operating temperature (C): -10 to +45
- Humidity: 0~95% non-condensing
Dimensions:
- 90 x 65 x 34 (hwd mm)
| Brand | SRS |
|---|---|
| Fitting | Surface Mount |
| Strike Operation | Fail Open (Failsafe) |
| Voltage | 12.0 Volt DC |
| Type of Device | Door Hold Open Magnet |
| Fits into (onto) | Wall mount |
