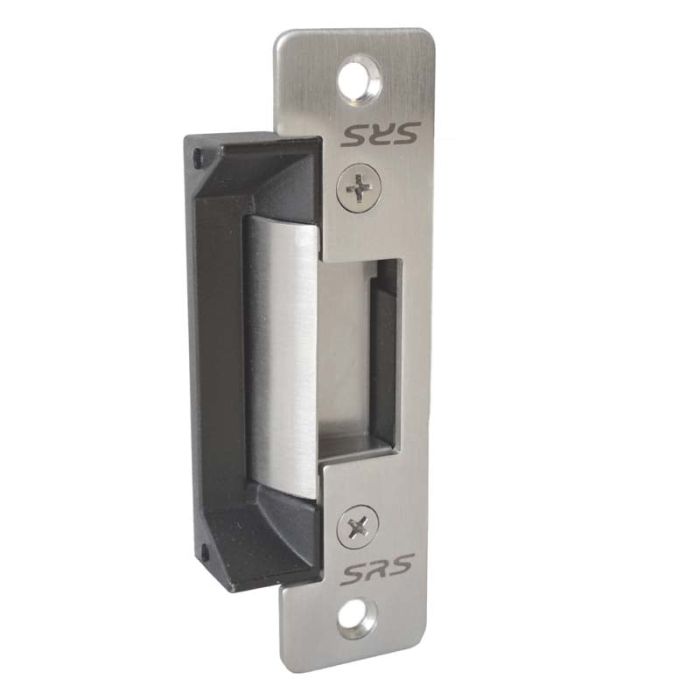

SRS Reversible Short Plate ANSI Electric Strike, 12V DC
£70.56
£58.80
In stock
SKU
ANSI-12-S


Free Delivery on this product
SRS ANSI-12-S ANSI Electric Strike with Short Plate and 12V DC Power Supply. It is reversible meaning it can be made fail secure or fail safe
Brand | SRS |
---|---|
Fitting | Mortice (flush) |
Strike Operation | Fail Locked (Fail secure) |
Voltage | 12.0 Volt DC |
Type of Device | Mortice latch release |
Fits into (onto) | Aluminium door |
Finish | Stainless steel |
SRS ANSI-12-S - Reversible Short Plate ANSI Electric Strike, 12V DC
A compact electric strike, which can be installed in metal frames with the faceplate and fixing kit supplied.
The strike is reversible meaning that it can easily be changed over from fail locked (PTO), to fail safe (PTL) by simply sliding a screw.
Features:
- Applications - For metal/aluminium double door or frame
- Endurance - 1,000,000 cycles
- Connection - Solenoid leads colour RED (+) / RED (-)
Technical Specifications:
- Voltage - 12 V DC +/- 10%
- Current - 230 mA +/- 10%
- Holding - 680 kg
- Note: 680 kg holding force is equivalent to the highest specification available for these strikes
- Suitable - For 15 mm latches, based on a 3 mm door gap
- Default - Power to Open (fail-secure) - Reversible
This electric strike is a direct replacement for SHORT FACEPLATE - 12 V DC versions of :
-
Adams Rite
- Short faceplate (7100*, 7101*, 7140*, 7161*, 7170*)
- Long faceplate (7110, 7111)
- Short faceplate (AL111AS*, AL112AS*)
- Long faceplate (AL111BS, AL112BS)
- Short and Long faceplate (EL901**, EL902**)
- Gianni GEM (GK100*, GK110*,GK311*)
- Trimec (110111-060*, 110112-060*,ES100*, ES110*)
Alpro
* These strikes are for aluminium or metal frames. This shorter faceplate is required.
** These models come with a short and long faceplate. Check the length of the faceplate fitted
Alternative:
- ANSI-12-L - Long Faceplate 12 V DC version (202 mm) lip
- ANSI-24-S - Short Faceplate 24 V DC version (124 mm) lip
- ANSI-24-L - Long Faceplate 24 V DC version (202 mm) lip
Optional Accessories:
- ANSI-LIP-25 - 25 mm extension lip
- ANSI-LIP-50 - 50 mm extension lip
- ANSI-PLATE-124 - Short faceplate for metal/aluminium frames
- ANSI-PLATE-202 - Long faceplate for timber frames
Changing the operation Power To Open - Power To Lock
The operation of the electric strike is reversible from Fail Secure (PTO) to Fail Safe (PTL). It is simply a case of slackening the adjuster screw, sliding it along, and re-tightening. DO NOT remove the screw.

Packing Information:
- Electric strike with 124 mm faceplate (1)
- Self tapping screws (2)
- Positioning label (1)
- User manual (1)
- Net weight - 165 g +/- 5%
