SRS Wi-Fi MAX Villa Kit - 7 inch Video Monitor + Tuya Mobile App


Free Delivery on this product
SRS 705WLKIT-01TUYA Wi-Fi MAX Wireless Villa Kit with 7 inch Video Monitor and Tuya App
The SRS 705WLKIT-01TUYA Wi-Fi MAX Villa Kit is a powerful wireless video intercom system with up to 250m range, a 7" HD monitor, and full Tuya Smart App control. Easy to install with no professional wiring required, it delivers reliable access control and remote monitoring for homes, apartments, and gated properties.
Quick DIY Installation
Designed for hassle-free setup, the kit requires no professional installation. Wall or desk mount options make it simple to fit indoors and outdoors. The outdoor unit supports multiple lock types, including electric locks, gate motors, and magnetic locks, allowing for versatile access control solutions for a wide range of installations.

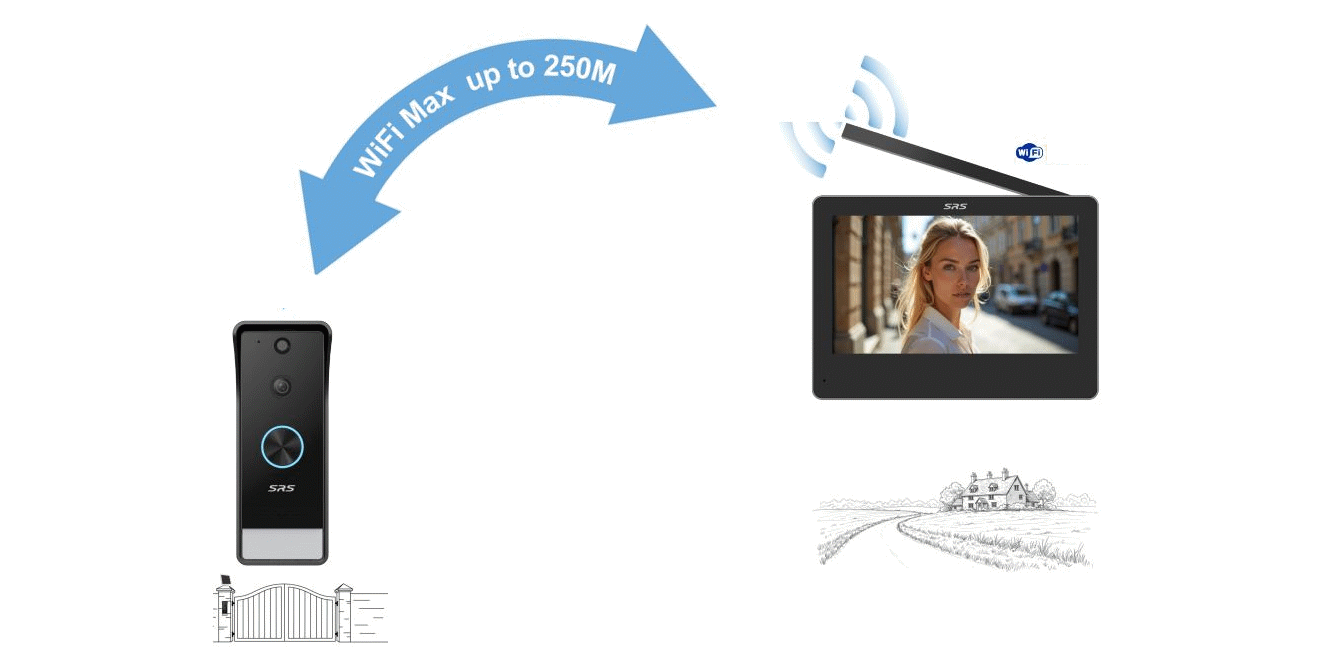

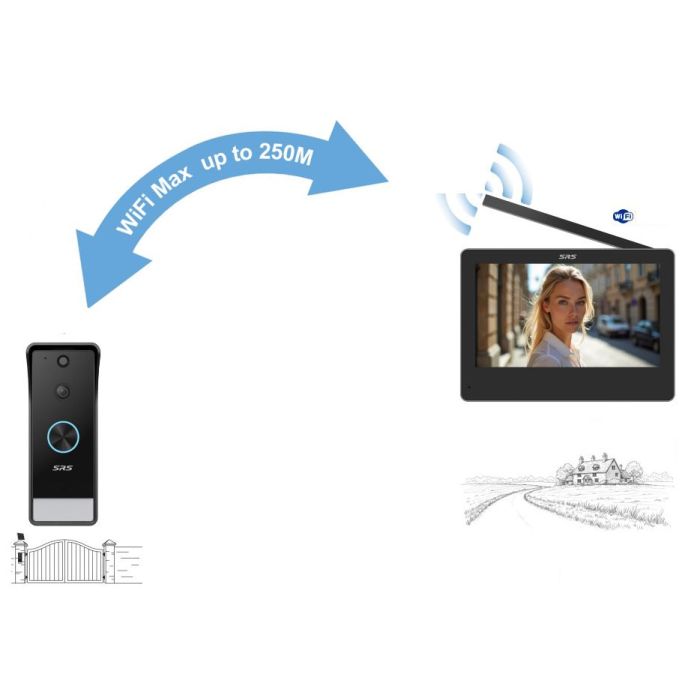

250m Long-Range Wireless Performance, half the price of 4G systems
Enjoy a stable 250m open-field wireless connection between the entrance panel and monitor, making it ideal for semi-remote locations.

Tuya Smart App Integration - all your devices in one solution
Control not just your intercom but all your smart devices through the Tuya app. Receive instant visitor alerts, view live video and unlock doors remotely from anywhere. All in one simple solution.

HD Video, Smart Security and 7 inch Colour Video Monitor
Features a 2MP wide-angle camera, motion detection, night vision and IP55 weather resistance for 24/7 protection. Supports multiple lock types for secure access control. The indoor HD display provides two-way audio, remote unlocking, and recording to 128GB TF card. Clear visuals and intuitive controls keep you in charge.
3 Flexible Power Options
The Wi-Fi MAX kit is built with energy efficiency in mind, featuring a removable 5000mAh lithium battery that can be charged via:
- Local PSU (included)
- Power from gate controller
- Optional solar panel
The SRS 705WLKIT-01TUYA offers wireless freedom, smart app control, and long-range reliability - an advanced video intercom solution for modern security.
Features:
- Wireless Transmission Range - Up to 250 metres in open areas
- Convenient Mobile App remote control
- 2MP HD camera, 160 degree view angle
- Motion detection
- Infrared Night Vision
- Removable 5000mAH lithium battery, which also can be charged with a solar panel
- 7" display with HD resolution
- Up to 128GB TF card storage for recording
- Built-in lithium battery, DC 5V type C port
- Low power consumption
- Compatible with electric locks, gate motors, and magnetic locks
Technical Specifications:
- Wireless transmission (frequency between indoor unit and outdoor unit): 866~868MHz
Indoor Unit
- Screen resolution: 1024(RGB)* 600
- Display size: 7" IPS
- Battery: DC3.7V/1150mAh lithium
- Power supply: DC5V/1A
- Operating current: <800mA
- Standby current (average): <300mA
- Ring/talk volume: >80dB
- TF card: Up to 128 GB
- WIFI frequency: 2.4GHz & 5GHz
- Wireless distance: 250m (open area)
- Wi-Fi range: 80m (open area)
- Operating temperature: -10C~50C
- Relative humidity: 10%~90%(RH)
- Video Monitor Dimensions: 128 x 181 x 24 (mm hwd)
Outdoor Unit
- DIN Rail Power Supply: INPUT: AC100-240V 0.8A 50/60Hz , OUTPUT: DC12V 2.5A
- Battery: DC3.7V/5000mAh lithium (DC5V/1A or solar powered)
- Camera: 2MP, 1080P, 160 degree
- Ring/talk volume: >80dB
- Standby current: <300uA
- Operating current: <500mA
- Wireless distance: 250m (open area)
- Night vision: 850nm (infrared)
- IP rating: IP55
- Lock voltage/current:30V/3A (Max.)
- Operating temperature:-20C~50C
- Relative humidity:10%~90% (RH)
- Entrance Panel Dimensions: 181 x 69 x 46.5 (mm hwd)
Brand | SRS |
---|---|
Audio or Video | Video |
Call Buttons | 1 call button |
Panel Mounting | Surface Mount |
Access Control Options | None |
Panel Trade Button | Trade Button - NO |
No of Entrance Panels | 1 entrance panel |
Phone Type | Receiver - Hands Free Wi-Fi |
