SRS Internal Aluminium Fail-Safe Monitored Double Mini Magnet, Surface

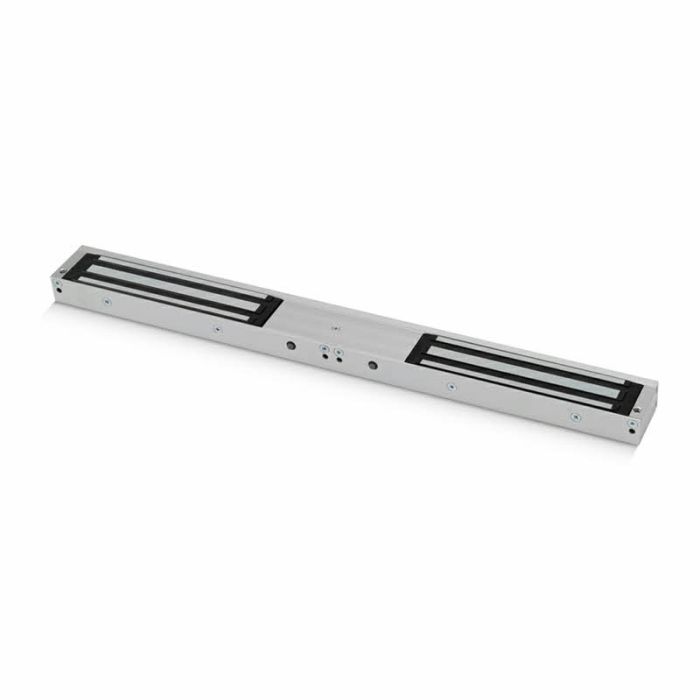

SRS 10005 Internal Aluminium Fail-Safe Monitored Double Mini Magnet, Surface

Fail-safe monitored double mini maglock with holding force up to up to 600lbs x 2 (272Kg x 2). It also has a 12/24Vdc operating voltage.

This magnetic lock is manufactured from aluminium and is suitable for surface mounting.

Features:

• Aluminium
• Fail-Safe (Power-to-Lock)
• Surface mount
• Status LED: RED and GREEN
• Holding force up to 600lbs x 2 (272Kg x 2)

Technical Specifications:

• Operating voltage: 12/24Vdc
• Voltage tolerance: ±15%
• Current draw: 500mA at 12Vdc, 250mA at 24Vdc (at temperature 20C) for each magnet
• Operating temperature (C): -10 to +55
• LockÕs surface temperature: Current temperature ±20% (when power is on)
• Magnetic bond sensor monitor output remotely monitors the door lock or unlock status. (N.C. Output-Door opened; N.O. Output door closed) (SPDT rated 0.25A at 12Vdc)
• Humidity: 0~95% non-condensing
• Special Zinc finishes for magnet and armature plate
• Weight: 4.0kg (approx)

Dimensions:

• 43 x 500 x 25 (hwd mm)
