Fermax Module Frame for Skyline Entrance Panels (Size: 1V-S1)
£57.60
£48.00
SKU
F-7341
- This product is available to order. The lead time is normally 2 – 4 working days.
- An accurate despatch date will be confirmed with you once order is received by our sales team (during office hours).
- Free Delivery on orders over £50
- Applies to orders for IN STOCK items totalling £50 ex. VAT

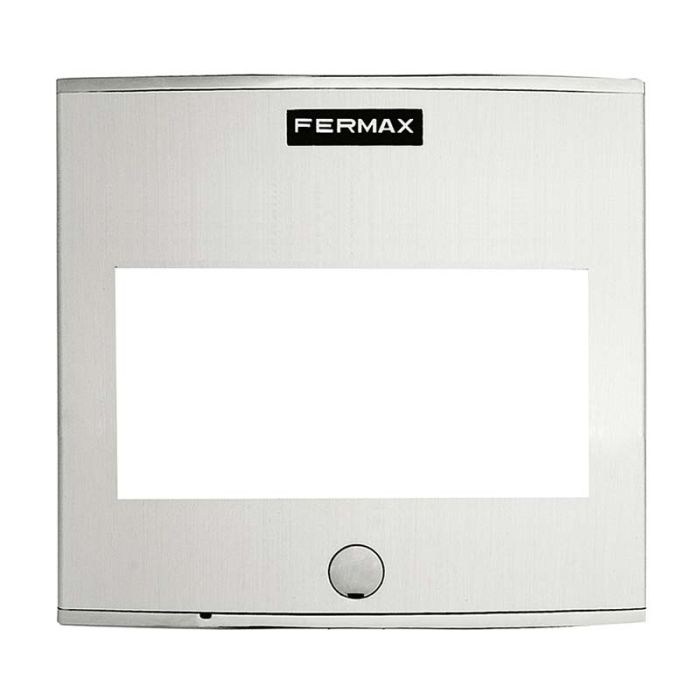

Fermax F-7341 Skyline Frame 1V Serie 1 - modular door entry panel frame, 130 x 128 mm, accepts V and W sized modules.
Fermax F-7341 Skyline Frame 1V Serie 1 for Door Entry Panels
The Fermax F-7341 is the smallest frame in the Skyline modular outdoor panel range, designated Serie 1. It accommodates 1V equivalent module slot, making it ideal for single-module configurations such as a standalone proximity reader, single pushbutton or informative module. Two module sizes are available across the Skyline system: V and W, where a W module occupies twice the space of a V module.
Multiple frames from the same series can be combined using joining bolts (ref. 8829) to create larger panel assemblies. The Skyline system supports up to 99 pushbuttons per panel with a DUOX PLUS amplifier. The aluminium-silver finish, chromed zamak pushbutton reinforcements and watertight tapes provide robust outdoor protection.
Key Features
- Serie 1 frame accepting 1V equivalent module
- Smallest frame in the Skyline range
- Modular clip-on assembly for rapid module installation
- Combinable with additional Serie 1 frames via joining bolts ref. 8829
- Compatible with all Skyline V and W modules
- Chromed zamak pushbutton reinforcements
- Watertight tapes for water and dirt protection
- IP43 IK07 rated when fully assembled
Dimensions
- Frame: 130 x 128 mm (W x H)
- Flush box: 115 x 114 x 45 mm
- Surface box: 130 x 128 x 33 mm
Technical Specifications
- Frame width: 130 mm
- Frame height: 128 mm
- Module capacity: 1V or equivalent
- Protection rating: IP43 IK07 (assembled panel)
- Finish: Aluminium-silver
- Series: Serie 1
| Brand | Fermax |
|---|---|
| Modules | Module frame - 1 row, 1 col. |
| Finish | Aluminium-Silver |
| Range | Fermax SkyLine |
| Cabling | Fermax DUOX 2 wire BUS cabling |
