Comelit Digital Electronic Key Module for iKall Metal Series
£460.97
£384.14
SKU
3348BM
- This product is available to order. The lead time is normally 2 – 4 working days.
- An accurate despatch date will be confirmed with you once order is received by our sales team (during office hours).
Free Delivery on this product

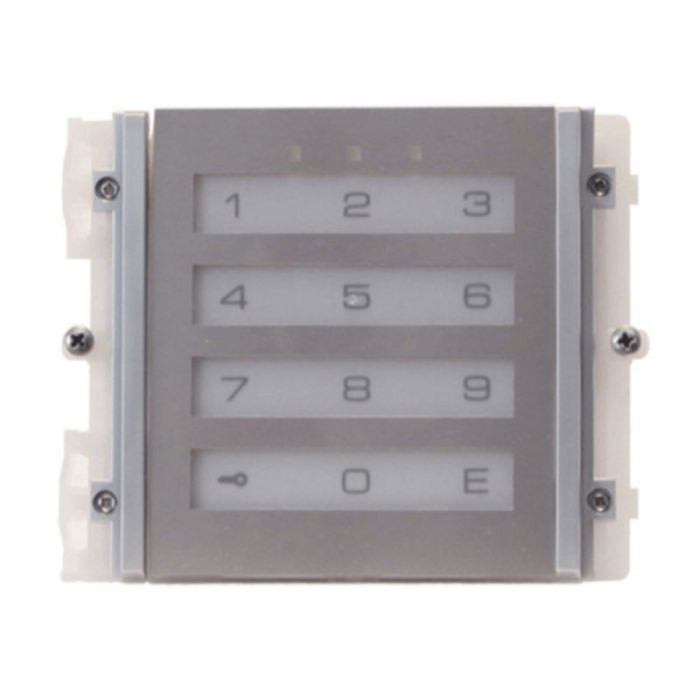

Comelit 3348BM digital electronic key module for iKall Metal series, stainless steel finish, LED keypad.
Comelit 3348BM Digital Electronic Key Module for iKall Metal Series
The Comelit 3348BM is a digital electronic key module for the iKall Metal series entrance panel range. It features an LED-backlit keypad with selectable blue, white or off lighting options and a stainless steel 316 finish to match the iKall Metal panel aesthetic. When a code of 1 to 8 digits is entered, two 10A relays are activated, enabling operation of electric door locks or other devices. The module supports both standalone 12VDC/12VAC operation and Simplebus bus-powered configurations.
Key Features
- LED keypad backlighting with blue, white and off options
- Stainless steel 316 finish
- 1 to 8 digit code entry
- Two 10A relays for electric lock or device control
- Standalone (12VDC/12VAC) or Simplebus powered
- Flush-mounted installation
Dimensions
- 89.5 x 112 x 40 mm (H x W x D)
Technical Specifications
- Supply voltage: 12VDC / 12VAC (standalone) or Simplebus bus powered
- Relay outputs: 2 x 10A
- Finish: Stainless steel 316
- Mounting: Flush-mounted
- Operating temperature: -5 to +55 degrees C
- Operating humidity: 25 to 75% RH
- Standby absorption: 20 mA
- Absorption with 1 bistable relay activated: 45 mA
- Absorption with 2 bistable relays activated: 65 mA
- Dimensions: 89.5 x 112 x 40 mm
| Brand | Comelit |
|---|---|
| Modules | Module - 1 row, 1 col. |
| Access Control Options | Keypad - built into panel |
