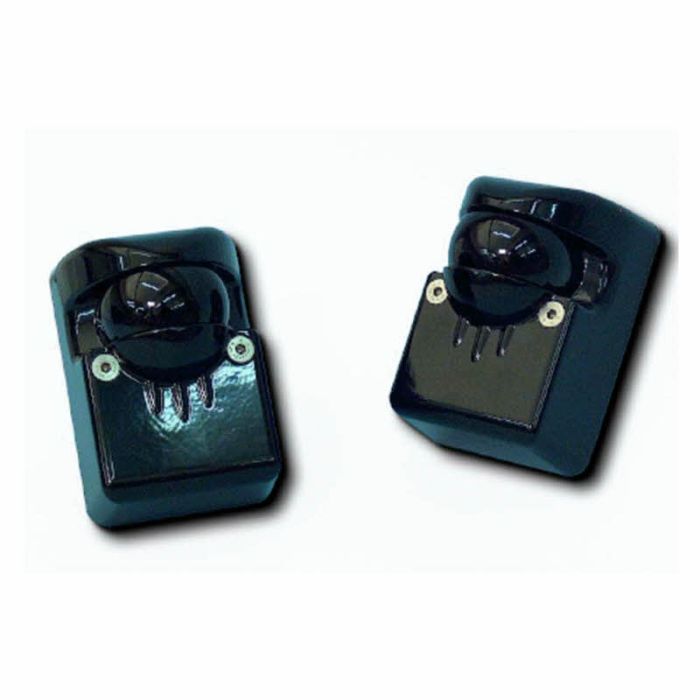

CDVI SEF2410AVN | Vandal-Proof 10M Adjustable Infrared Beam

CDVI SEF2410AVN | Vandal-Proof 10M Adjustable Infrared Beam

The photocells from ERONE provide a range of active infrared beams which will activate if the beam is cut between the transmitter at one end and receiver at the other.

The range includes models of varying beam lengths, and the option of a vandal resistant casing. Active infrared beams are ideal for protecting the active zone on swing and sliding gates and doors, to prevent injury or accidental damage if a person/ obstacle is within the zone.

The photocells can also used as signalling devices where the beam is interrupted by vehicles or pedestrians, and as a guard for machinery which can be stopped automatically if a person approaches the machine.

The 10 and 20 metre adjustable optics are suitable for a more difficult installation environment. Both have vandal resistant casings.

Features:

• Active infrared beam
• Vandal resistant
• 10 metre ranges
• Internal or external use
• Adjustable lens

Technical Specifications:

• Range: 10 metres
• Optics: Adjustable
• IP rating: IP55

• Voltage: 12-24Vac/dc

Dimensions:

• 99 x 69 x 69mm (hwd)
