CDVi SEF2410 Flat Infrared Photocell, 10m Fixed Beam, IP55
£77.64
£64.70
SKU
SEF2410
- This product is available to order. The lead time is normally 14 working days.
- An accurate despatch date will be confirmed with you once order is received by our sales team (during office hours).
Free Delivery on this product
CDVi SEF2410 flat active infrared photocell with fixed optics and 10m beam range. 12-24Vac/dc, IP55 rated, polycarbonate housing. Ideal for gate and door safety zones

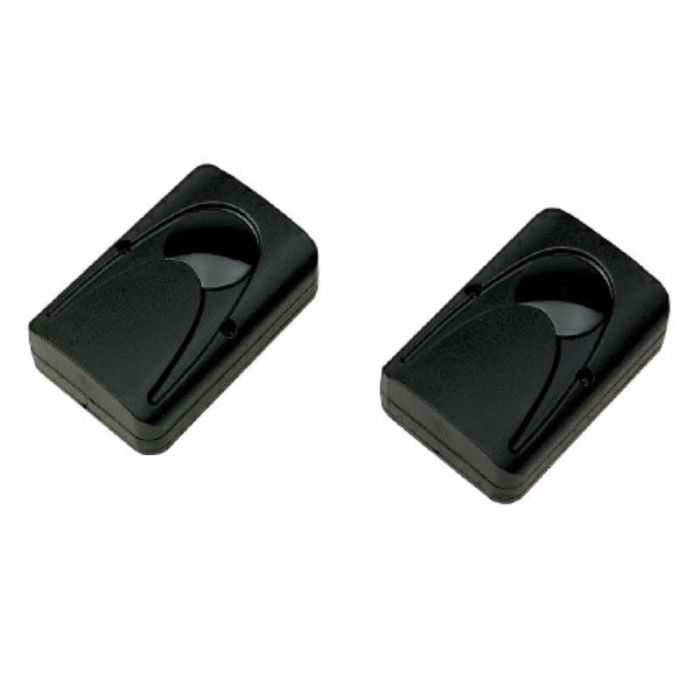

CDVi SEF2410 Flat Active Infrared Photocell with 10m Fixed Beam
The CDVi SEF2410 is a flat profile active infrared photocell from the ERONE range, featuring fixed optics with a 10 metre beam range. Designed for protecting the active zone on swing and sliding gates and doors, it prevents injury or accidental damage when a person or obstacle interrupts the beam. The flat form factor allows discreet surface mounting for both internal and external installations. Also suitable as a signalling device for vehicles or pedestrians, and as a machinery guard.
Key Features
- Active infrared photocell with fixed optics
- 10 metre beam range
- Flat profile for discreet surface mounting
- Double contact relay output (1x NO, 1x NC)
- Suitable for internal and external use
- IP55 rated polycarbonate housing
- 12-24Vac/dc power supply
- GaAlAs emission diode at 880 nm wavelength
Technical Specifications
- Beam range: 10m
- Technology: Infrared, 1.5 KHz
- Wavelength emission: 880 nm
- Emission diode: GaAlAs
- Contacts: 1x NO, 1x NC
- Voltage: 12-24Vac/dc
- Max DC power: 24W at 48V
- Max AC power: 60V at 48V
- Material: Polycarbonate
- Mounting: Surface
- Protection class: IP55
- Operating temperature: -10C to 55C
- Certifications: CE, RoHS, DEEE
Dimensions
- 60 x 98 x 22 mm
| Brand | CDVi |
|---|
