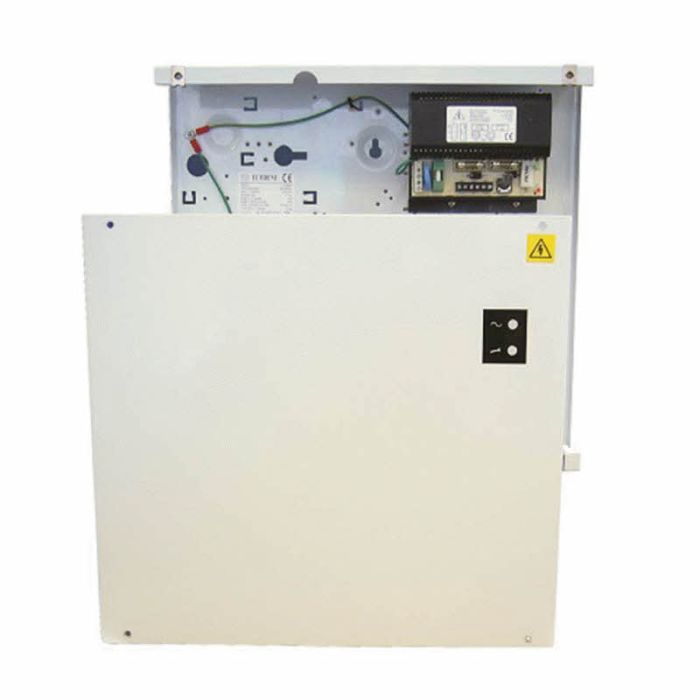

CDVI PSU12-3SM | 12Vdc, 3A Switch Mode Power Supply, Standard Case
£85.04
£70.87
SKU
PSU12-3SM
- This product is available to order. The lead time is normally 3 – 5 working days.
- An accurate despatch date will be confirmed with you once order is received by our sales team (during office hours).
Free Delivery on this product
CDVI PSU12-3SM | 12Vdc, 3A Switch Mode Power Supply, Standard Case
CDVI PSU12-3SM | 12Vdc, 3A Switch Mode Power Supply, Standard Case
The CDVI Range of switch mode power supplies are ideal for access control and general applications requiring standby battery capability.
The units have a regulated highly stable output supplying full rated current to load and a universal mains voltage input range (90 to 264Vac).
CDVI products using switch mode technology are typically 80-87% efficient. This can save your customers money by reducing their power bills and carbon footprint.
Switch mode technology also makes for more reliable products in the field as they are less likely to overheat.
Features:
- LED indication
- Additional battery charging current
- Short circuit protection
- Standard metal case
- Cost effective switch mode technology
- Energy efficient: saves power and longer life in the field
Technical Specifications:
Electrical Specifications:- Rated voltage: 100 to 240 Vac
- Operational voltage: 90 to 264Vac
- Output: 13.8Vdc
- Maximum current: 3.0A
Dimensions:
- Standard case: 200 x 230 x 80mm
- Weight standard case: 2.0kg
- Environment: -10C to +40C
Brand | CDVi |
---|---|
Voltage | 12.0 Volt DC ; 13.8V Charger |
Power | 3.0 Amp. (3000 mA) |
Type | PSU - Metal Boxed |
