CDVi KEY-AFMAKA Flush Architrave Key Switch, Maintained, Keyed Alike
£52.63
£43.86
In stock
SKU
KEY-AFMAKA
- Free Delivery on orders over £50
- Applies to orders for IN STOCK items totalling £50 ex. VAT

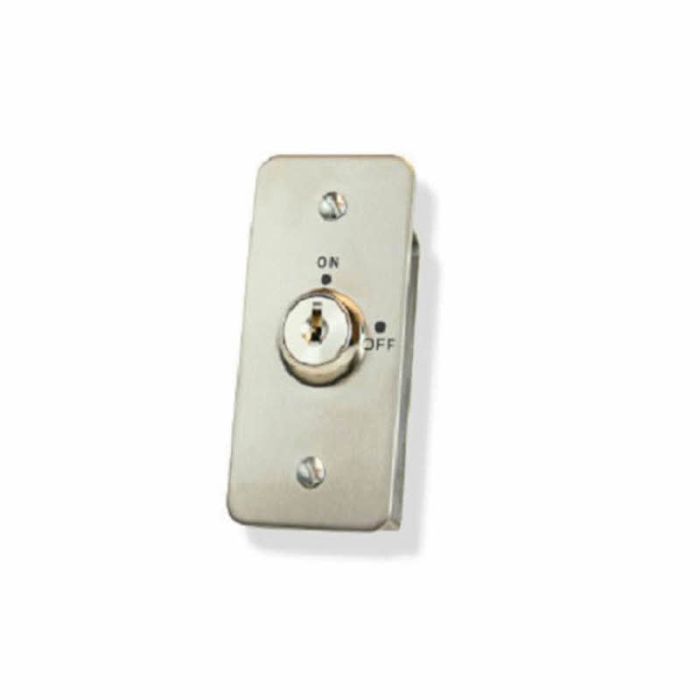

CDVi KEY-AFMAKA flush mount architrave key switch, 2-position maintained, keyed alike. 304 stainless steel faceplate, DPDT contacts, 500,000 cycles tested.
CDVi KEY-AFMAKA Flush Architrave Key Switch - Maintained, Keyed Alike
The CDVi KEY-AFMAKA is a 2-position maintained key switch in an architrave format, designed for flush mounting into a standard UK back box. The faceplate is manufactured from 304 grade stainless steel with laser-engraved ON/OFF markings. Supplied with two keys, keyed alike, and tested to 500,000 cycles for dependable long-term operation in access control installations.
Key Features
- 304 stainless steel faceplate with laser-engraved ON/OFF
- 2-position maintained switching action
- Keyed alike - supplied with 2 keys
- Flush mount architrave format
- DPDT output with COM/NO/NC contacts
- Tested to 500,000 cycles
- 2 relay outputs
Technical Specifications
- Voltage: 24Vdc
- Max load: 2A
- Switching mode: Maintained
- Mounting: Flush
- Form factor: Architrave
- Keying: Keyed alike
- Output: DPDT
- Relays: 2
- Contact: COM/NO/NC
- Material: 304 stainless steel faceplate
- Weight: 0.12 kg
- Operating temperature: -20C to 55C
- Certifications: UKCA, CE, RoHS, DEEE
- Warranty: 2 years
Dimensions
- Faceplate: 39.70 x 85.50 mm
- Key barrel: 19 mm diameter
| Brand | CDVi |
|---|---|
| Size | Narrow (mullion mount) |
| Product Type | Key Switch |
| Operation | Keyed (alike) |
| Finish | Stainless (brushed) |
