CDVi DWSR102U DIGIWAY SR Spring Return Door Operator, 230Vac

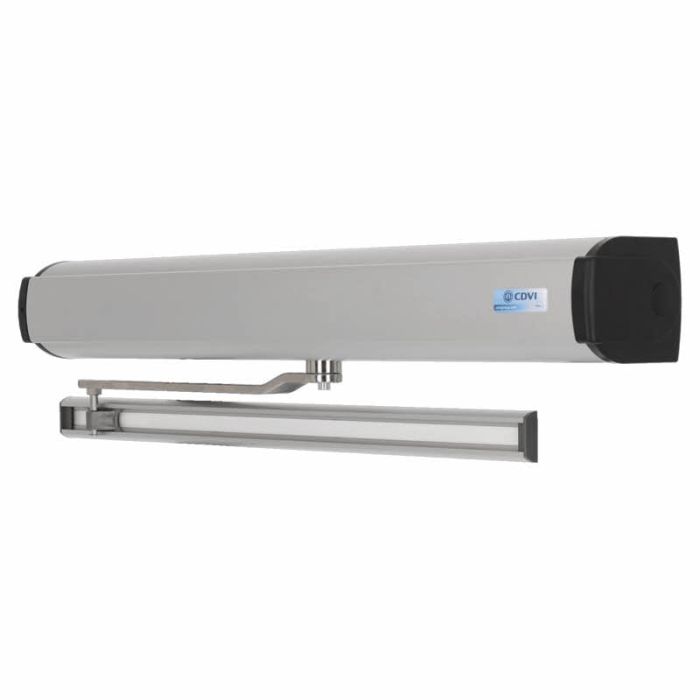

CDVi DWSR102U DIGIWAY Spring Return Door Operator with Universal Arm

The CDVi DWSR102U is a heavy duty spring return automatic door operator for swing doors, assisted by a chain driven spring mechanism. Suitable for people with reduced mobility, it is ideal for higher traffic sites such as front doors and commercial premises.

The DWSR102U is fire rated for 60 minutes under EN1634-1 and conforms to the EN16005 standard for automated door safety. It features an LCD programming display for easy setup and a built-in Bluetooth module for programming via the DIGIWAY BLE smartphone app. The universal arm included supports both inward and outward opening doors. A new DWAA arm is also available for installation to thicker walls on outward opening doors.

Key Features

• Spring return (semi-automatic) and fully automatic (motor return) modes
• 60-minute fire rated to EN1634-1
• EN16005 compliant for automated door safety
• LCD menu for easy setup
• Built-in Bluetooth for smartphone app programming
• Universal arm for inward or outward opening doors included
• Compatible with CDVi transmitters using Keeloq hopping code
• 50 transmitter memory capacity
• Satin anodised aluminium finish
• Chain driven spring mechanism

Technical Specifications

• Power supply: 230Vac, 50Hz
• Max power: 100W
• Lock output: 12Vdc / 1A (max) or 24Vdc / 0.5A (max)
• Auxiliary device output: 12Vdc / 500mA (max)
• Transmitter memory: 50
• Transmitter encoding: Keeloq hopping code
• Frequency: 433.92MHz
• Fire rating: EN1634-1 (60 minutes)
• Standard compliance: EN16005
• Operating temperature: -10C to 55C
• Certifications: CE, RoHS
• Warranty: 2 years

Dimensions

• Operator unit: 685 mm x 110 mm x 90 mm
