Bticino 352400 | Night + Day Wide Angle Camera Module For Sfera Panels

Bticino 352400 | Night & Day Wide Angle Camera Module For Sfera Panels

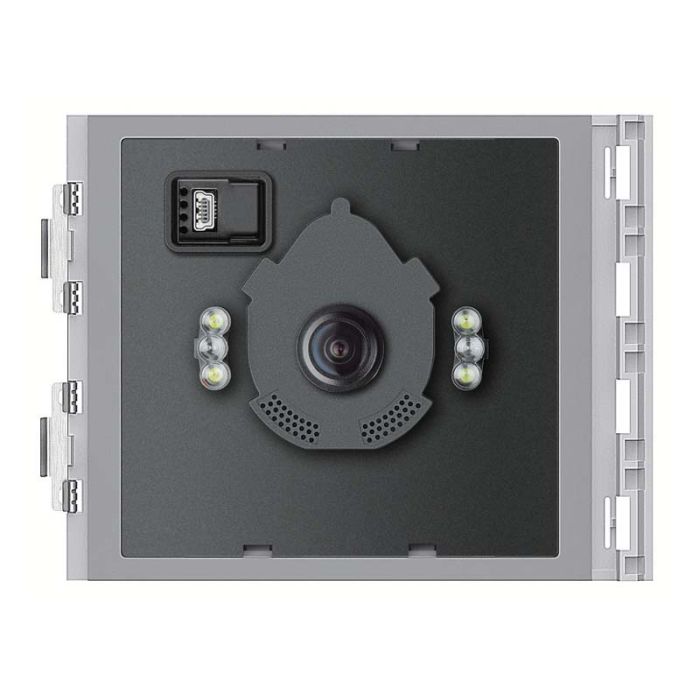

This wide angled camera module was designed to be used with the Sfera New and Sfera Robur range of modular entrance panels and front covers.

It features a colour camera with a 1/3 inch sensor for night time support and an infrared LED, guaranteeing clear images in low lighting conditions.

The connections used to link multiple modules in the system are made using the multi-cable supplied. Once the last module is installed, simply place the supplied closing card in place and complete with surround plate.

Please note: This device must not be configured.

Features:

• Wide eye camera lens
• IR LED for low lighting conditions

Technical Specifications:

• Power supply from SCS BUS: 18 - 27 V DC
• Stand by absorption: 20 mA
• Maximum operating absorption: 115 mA
• Colour sensor: 1/3
• Lens: F2.5 - F1.85 mm
• Resolution: 330 TV lines (horizontal)
• Illumination of the viewing field: LED IR
• Brightness adjustment: Automatic
• Interlace: 2:1
• Operating temperature: -25 to +70 degrees C
• Protection index (panel assembled): IP 54

Dimensions:

• 91 x 115 (hw mm)
