Bticino Sfera Allstreet Audio/Video Front Cover - 2 Pushbuttons

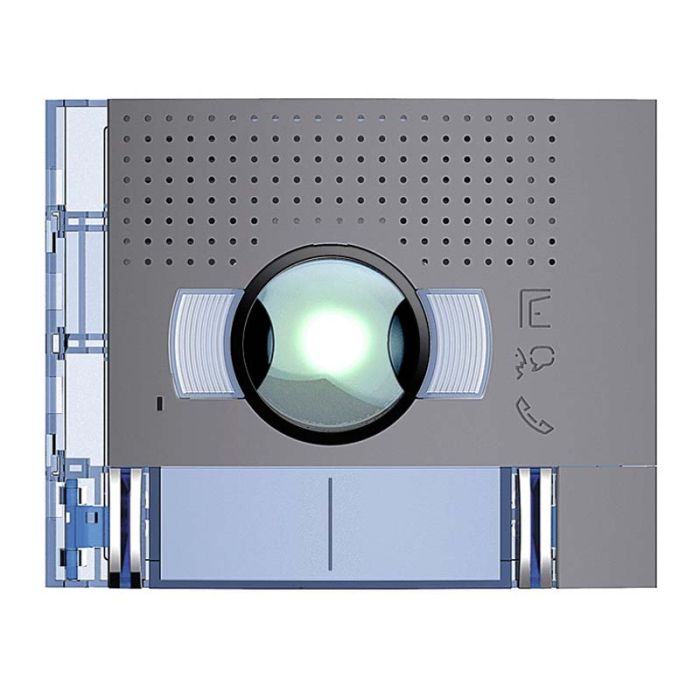

Bticino 351323 Allstreet A/V Front Cover with 2 Pushbuttons for Sfera

The Bticino 351323 is an Allstreet finish front cover with two integrated call pushbuttons arranged in a double row, designed for use with the Sfera audio/video module 351500 on Bticino 2-wire SCS BUS door entry systems. Suitable for two-family video entrance panel configurations within the Sfera New modular range.

The front cover fits directly over the 351500 audio/video module. The integrated pushbuttons include backlit nameplate windows controlled by the connected audio/video module. Connection is via the supplied multi-cable. Available in three Sfera New finishes: Allmetal (351321), Allwhite (351322) and Allstreet (351323).

Key Features

• Allstreet finish for Sfera New entrance panel assemblies
• 2 integrated call pushbuttons in double row with backlit nameplates
• Designed for audio/video module 351500 with 5 MP HQ camera
• Night backlighting controlled by connected audio/video module
• Part of the Bticino Sfera modular entrance panel system
• Compatible with Sfera New flush and wall mounted frame configurations

Technical Specifications

• System: Bticino 2-wire SCS BUS
• Finish: Allstreet
• Module type: Audio/video front cover with 2 pushbuttons (double row)
• Compatible module: 351500 (Sfera A/V module with 5 MP HQ camera)
• Protection class (assembled panel): IP54
• Impact protection (assembled panel): Up to IK08
• Pushbuttons: 2

Dimensions

• 91 x 115 mm (W x H)
