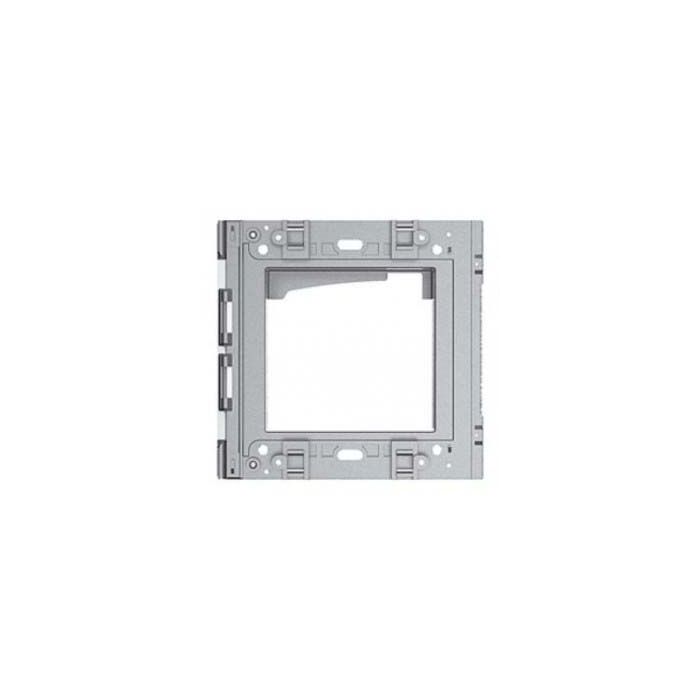

Bticino 350315 1 Module Support Frame for Sfera Robur Entry Panel

Bticino 350315 1 module support frame for Sfera Robur entrance panels. This frame holds a single electronic module in place and secures it with the clips provided, forming the structural base of a Robur entrance panel assembly.

Used in both flush mounted and wall mounted installations. For flush mounting, the support frame fits into the Robur flush mounted box 350110 and is completed with the 1 module finishing frame 350415. For wall mounting, use the shared Sfera New wall mounted boxes. The Sfera Robur range requires separate support and finishing frames, unlike Sfera New which uses a combined frame assembly.

About This Product

The Bticino 350315 is a 1 module support frame specifically designed for the Sfera Robur entrance panel range. It is required for every Robur panel build to secure the electronic module before the finishing frame is fitted. Suitable for installers building vandal-resistant entrance panels in demanding environments.

Key Features

• 1 module capacity for single electronic module
• Clip-in module retention
• Compatible with flush mounted and wall mounted installations
• Designed specifically for Sfera Robur range
• Pairs with finishing frame 350415 for flush mounting

Technical Specifications

• Module Capacity: 1 module
• Range: Sfera Robur
• Mounting: Flush mounted or wall mounted
• Compatible Flush Box: 350110
• Compatible Finishing Frame: 350415

Compatibility

Compatible with all Sfera electronic modules including audio/video modules 351500 and 351300, speaker modules, pushbutton modules, display modules, keypad modules and key card reader modules. Requires Robur flush mounted box 350110 for flush installation and finishing frame 350415 to complete the assembly.

Dimensions
• 134 x 132 x 34.5 mm (W x H x D)
