BPT Fadini F/202152 | System 880 Non Locking Kit For A Single Gate

BPT Fadini F/202152 | System 880 Non Locking Kit For A Single Gate

This Fadini operator is an oil-hydraulic unit that is particularly suited to medium-sized swing gates with leaves of up to 1.80 metres. Driven by a pressurised oil circuit and thrust force system, the HINDI 880 Sprint operator is fitted with an oil-hydraulic lobe pump, a perfect heart that provides optimal efficiency and duration.

Easy to Install

The HINDI 880 Sprint is easy to install thanks to the two connectors with plugs to be applied to the leaves and support pillars, to allow the leaves to open and close.

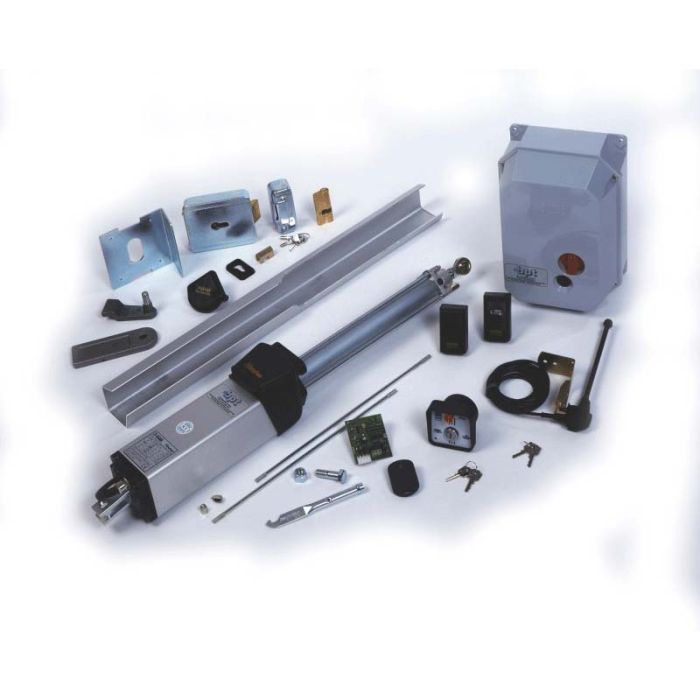

This type of operator has non locking units and an electric lock is required to be fitted to the gates The HINDI 880 Sprint operator comes in a ready to install kit and the most complete model comes with oil-hydraulic pistons with closure block, operation logic programmer, photoelectric cells, flashing light, radio receiver and service wrenches for emergency release in the event of a blackout.

Optimal safety and guaranteed long-lasting reliability

The anti-crush safety feature is guaranteed by maximum pressure valves that allow precise and stable thrust force regulation. A protective cover shields the adjustment valves to prevent tampering.

The HINDI 880 Sprint operator is built entirely of pressure cast aluminium and steel is used for parts subject to heavy wear. The special hydraulic oil inside the piston and the tank is ideal for both high and low temperatures and allows regular piston operation within a temperature range of -25 degrees C to +80 degrees C.

Features:

• Manual release with customized key
• Easy and safe gate driving force regulation
• Adaptable to fit any type of installation
• Available with braking system during opening and closing

Technial Specifications:

• Protective casing in anodized aluminium
• Connection to the gate with adjustable spherical head
