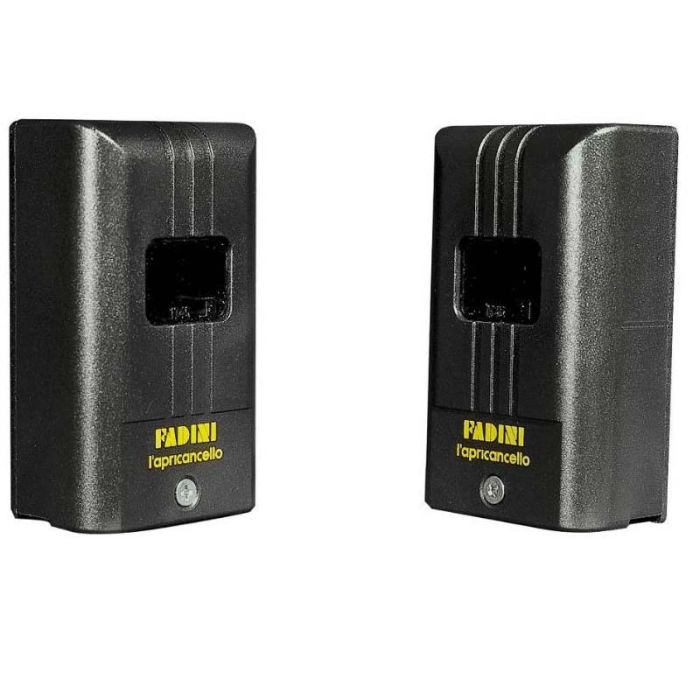

BPT Fadini F/107 | TRIFO 11 Slimline Photocells Pair

BPT Fadini F/107 | TRIFO 11 Slimline Photocells Pair

This pair of photocells are used as a safety device with gate automation system to detect objects in the gate path, during the closing phase.

The set is comprised of a transmitter and a receiver placed on either side of the gate or driveway. The transmitter continuously emits an infrared beam to the receiver.

If the infrared beam is blocked from reaching the receiver, the gates are either prevented from closing or they will stop immediately, during the closing phase.

The cover is made of shock resistant plastic and is designed to ensure that the photocells are unaffected by the weather conditions.

Easy to install, they provide an extremely versatile method of application either by screw fixing or mounting on posts.

Features:

• Supply voltage: 24 V AC/DC
• Absorption of the projector: 55 mA
• Absorption of the receiver: 35 mA

Technical Specifications:

• Working temperature: -10 Degrees C +60 Degrees C
• Capacity of the relay: 1A 125 V AC 60 VA max.
• Infrared modulated light: 1500 Hz
• Two relays : changeover
• Distance range: 6 m
• Obstacle detection time: 6 ms
• Protection standards: IP 55
