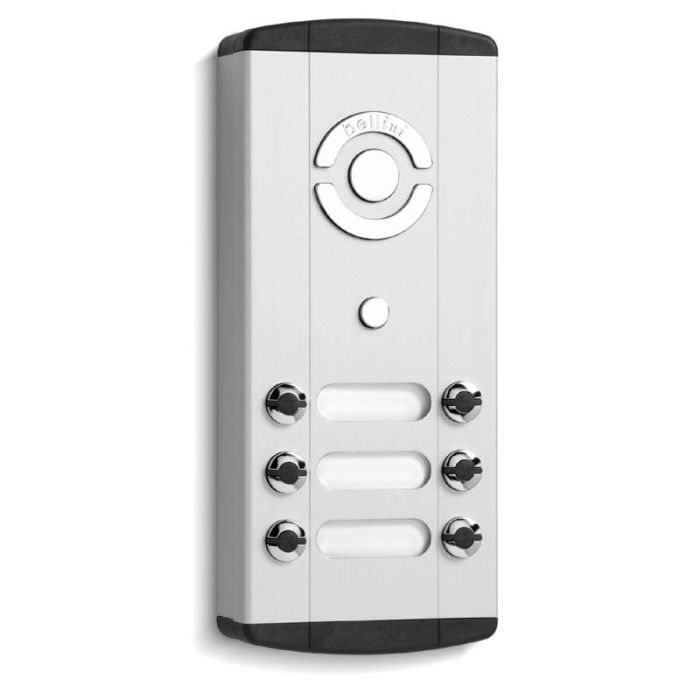

Bell BLP6 6 Button Bellini Surface Audio Door Entry Panel

Bell BLP6 6 Button Bellini Audio Door Entry Panel

The Bell BLP6 is a six button audio door entry panel from the Bellini range, designed for low-rise apartments, maisonettes and conversions. Manufactured from anodised aluminium with black plastic trims, contrasting chromed push buttons and speech grill, it provides a contemporary appearance suited to the private building sector.

The six button configuration uses a double push button layout with two call buttons per row for a compact panel design. The panel features an innovative hinged front plate assembly that simplifies wiring during installation, with hinges that can be changed from one side to the other for tight locations.

The model 61 speech unit must be ordered separately. Optional nameplate illumination is available via the BLP-LAMP lighting module. Tradesmen entry facility can be added by ordering model TRBL, which requires an additional button allocation on the panel.

Key Features

• Anodised aluminium construction with contemporary design
• Black plastic trims with contrasting chromed push buttons and speech grill
• Double push button layout for compact panel design
• Innovative hinged front panel for ease of wiring
• Reversible hinges for tight installation locations
• 6 push buttons with integral nameplates
• Surface mounting
• Optional nameplate illumination via BLP-LAMP module
• Compatible with Bell 900 series and Bellini audio systems

Dimensions

• Panel: H235 x W100 x D35 mm

Technical Specifications

• Material: Anodised aluminium
• Mounting: Surface
• Buttons: 6 (double push button style)
• Required speech unit: Model 61 (ordered separately)
• Optional accessory: BLP-LAMP nameplate illumination module
• Panel width: 100 mm
• Panel depth: 35 mm
• Panel height: 235 mm
