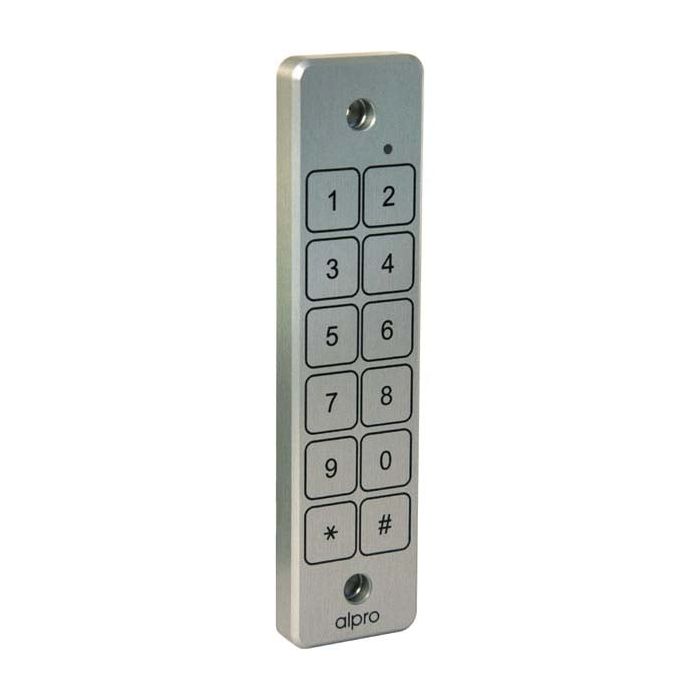

Alpro AS-626S-200/3M Waterproof Piezo Keypad 200 Users IP68

Alpro AS-626S-200/3M Waterproof Piezo Access Control Keypad 200 Users

The Alpro AS-626S-200/3M is a self-contained single door access control keypad supporting up to 200 user codes. Built using solid state Piezo technology with no moving parts, this slim surface mount unit is rated IP68 for full waterproof protection, making it suitable for both external and internal installations. The one-piece solid aluminium housing provides tamper and vandal resistance, secured with security plugs. Variable length codes from 4 to 8 digits offer up to 100 million combinations. Visual and audible feedback confirms code entry and programming operations. Non-volatile memory retains all codes during power loss. Anodised graphics ensure long life wear resistance. The unit includes a 2 amp changeover relay output and accepts 12V AC or 12-24V DC power at 120mA maximum draw. CE and UL approved. Covered by a 5 year guarantee.

Key Features

• Solid state Piezo technology - no moving parts
• IP68 waterproof rating for indoor and outdoor use
• Up to 200 user codes with 4 to 8 digit variable length
• 100 million code combinations
• Slim surface mount bright aluminium housing
• Tamper and vandal resistant one-piece construction with security plugs
• 2 amp changeover relay output
• Visual and audible feedback
• Non-volatile memory
• Anodised graphics for long life wear resistance
• CE and UL approved
• 5 year guarantee

Technical Specifications

• Power Supply: 12V AC or 12-24V DC (+/-10%)
• Current Draw: 120mA maximum
• Maximum Users: 200
• Code Length: 4 to 8 digits
• Combinations: 100 million
• Relay Output: 2 amp changeover
• Technology: Solid state Piezo
• Protection Class: IP68
• Finish: Bright Aluminium
• Mounting: Slim surface mount
• Certifications: CE, UL
• Guarantee: 5 years

Dimensions

• Width: 44.5mm
• Length: 181mm
• Depth: 12mm
