Alpro 250kg Double Mini Magnet Monitored

Alpro 56112 double mini electromagnetic magnet providing 500kg monitored holding force for aluminium, timber and steel door applications.

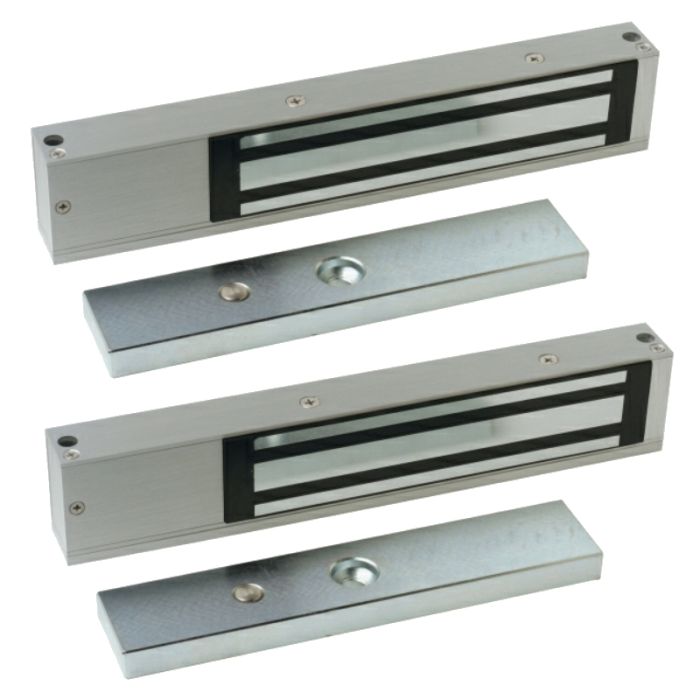

Alpro 56112 250kg Double Mini Magnet with Monitoring

The Alpro 56112 is a dual configuration mini magnet delivering a combined holding force of 500kg (1100lbs). Designed for access and exit control on aluminium, timber and steel doors, this monitored variant includes a relay with dry contact and integral LED for lock status feedback. The dual coil design accepts 12 or 24VDC input, and the built-in voltage spike suppressor protects against transient damage. Suitable for both inward and outward opening doors, the unit surface mounts to the door header transom bar for outward opening applications or to the door frame transom bar using L and Z brackets for inward opening configurations. The brushed satin aluminium housing provides a clean aesthetic finish with low ongoing maintenance. Fail safe operation ensures the door releases on power loss unless battery backup is installed. Covered by a 5 year guarantee.

Key Features

• 500kg (1100lbs) combined holding force from dual 250kg magnets
• Fail safe operation - releases on power loss
• Dual voltage 12 or 24VDC selectable (dual coil)
• Monitoring relay with dry contact and integral LED
• Built-in voltage spike suppressor
• Suitable for inward and outward opening doors
• Brushed satin aluminium housing
• Maximum 3mm door gap
• No moving parts - low maintenance
• 5 year guarantee

Technical Specifications

• Holding Force: 500kg (1100lbs)
• Supply Voltage: 12 or 24VDC (Dual coil) nominal +/- 10%
• Current Draw: 500mA at 12VDC / 250mA at 24VDC
• Monitoring: Relay with dry contact and integral LED
• Maximum Door Gap: 3mm
• Lock Type: Electromagnetic magnet - double
• Operation: Fail safe
• Housing Finish: Brushed Satin Aluminium
• Guarantee: 5 years

Dimensions

• Double Magnet Body: 25mm x 500mm x 42mm
• Armature Plate (x2): 184mm x 36mm x 11mm each
