Aiphone Six Call Button Audio Master Station with Handset

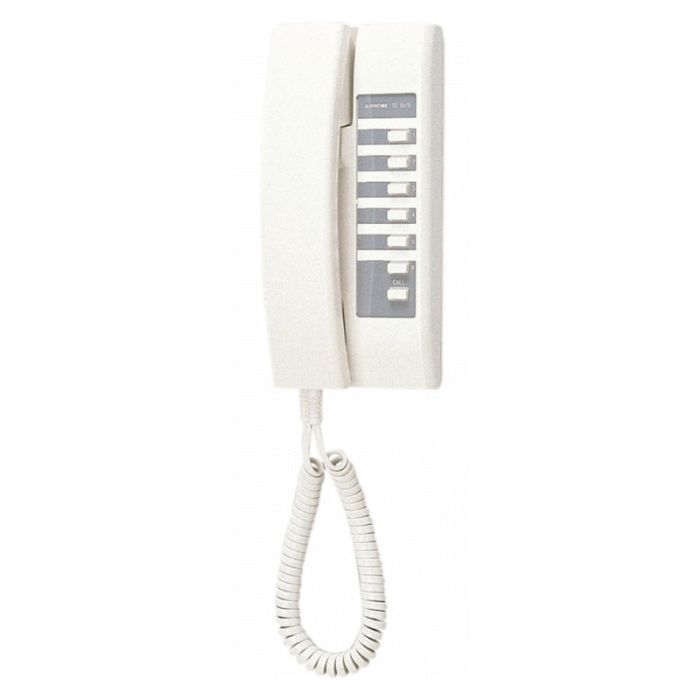

Aiphone TD-6H/B Six Call Button Master Station with Handset

This six call handset is a multi-channel selective-call intercom.

This system is on loop-wiring, intermixable and can be configured to all-master, master-selective system or mixed.

Features:

• 6 talk paths for communication and paging
• Handset cradle for wall mounting can be reversed for desk use
• Station-select break-in call
• Call extension buzzer or light

Technical Specifications:

• Power Consumption: 70mA per station
• Communication Type: Handset (full-duplex)
• Door Release Contact: N/O dry contact, 30V AC/DC, 1A (at DE-UR)
• Mounting: Desk mount or surface mount directly to wall or 1-gang box
• Wire Type: 16-cond., overall shield - use Aiphone #812216
• Wire Distance: Between TD Master Stations: 2,200(22AWG) 4,800(18AWG)

Dimensions:

• 210 x 100 x 73 (mm hwd)
