Aiphone IX-SSA-RA | Flush 1 Button Emergency Audio IP Door Station

Aiphone IX-SSA-RA | Flush 1 Button Emergency Audio IP Door Station

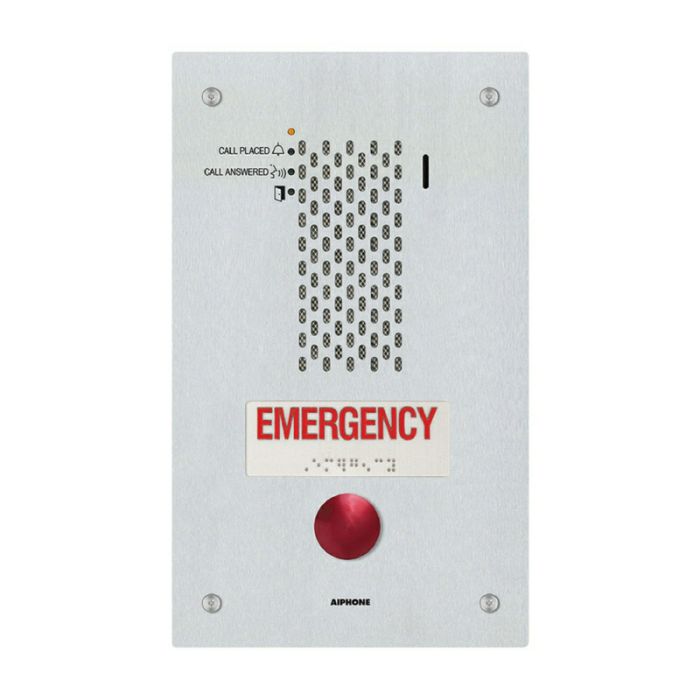

The IX-SSA-RA is a flush mount, IP addressable emergency call station.

The IX-SSA-RA has a single emergency call button and placard with raised lettering and Braille signage.

The emergency button can be programmed to call up to 20 different stations. This unit is weather resistant (IP65) and can connect to a network using Cat-5e/6 cable.

Audio can be captured on a micro SD card. The stations have a 600 Ohm output that can be used for paging or communication.

There are 2 contact outputs that can be programmed to trigger during door release, when the 600 Ohms output is used, or based on the status of the station.

Sound files can be uploaded for custom messages to be played during certain functions. The stations have audible and visual indications for calling, communication, and door release.

Features:

• SIP 2.0 compliant
• 802.3af PoE with PoE pass through (802.3at Type 2 PoE+)
• Emergency call button
• ADA compliant raised lettering and Braille signage
• Illuminated call button indicator
• Slot for micro SD card (not provided by Aiphone)
• IP65 rated, weather resistant (IP65)
• 2 contact outputs
• 6 trigger inputs

Technical Specifications:

• Power Source: PoE (IEEE 802.3af class 0) or 24V DC (PS-2420UL)
• Power Draw: 3.36 Watts @ 48V DC
• Operating Temp: -40C - 60C
• Ingress Protection: IP65
• Impact Protection: IK07
• Mounting: Flush mounted with included back box, or surface mount with the SBX-IDVFRA Stainless Steel surface mount box.
• Also compatible with the WB-CA, WB-HA, WB-CE, and WB-HE Emergency wall boxes or modular towers.

Dimensions:

• 10-7/16 H x 5-7/8 W
