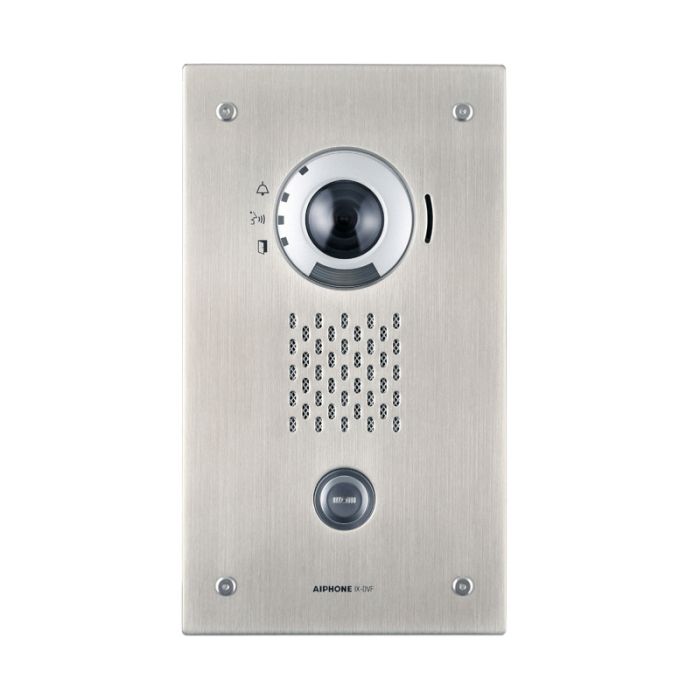

Aiphone 1-Way Flush IP Video Panel for IX Series

Aiphone 1-Way Flush IP Video Stainless-steel Panel for IX Series

This is a one-way stainless-steel IP video entrance station. This call station is surface mounted and is a robust vandal-resistant panel for outdoor use. Ideal for a one bedroom apartment, house or an office building. It can also be programmed to call a total of 20 stations.

This station is equipped with a 1.23 megapixel colour camera. The camera angle can be vertically adjusted using a lever on the back of the station. Ideal for customers who require a particular view of visitors approaching their door.

Audio and video recordings can be saved onto a micro-SD card and can be streamed to third party devices.

Features:

• 1.23 megapixel fixed color video camera
• Camera vertical adjustment (manual)
• Capture and store the audio and video of active conversations on a micro-SD card (not included)
• IP65 rated, weather-resistant
• Stainless-steel face plate
• Audible and visual indications for calling, communication, and door release
• Sound files can be uploaded for custom messages to be played during certain functions (door release, call placed, communication start & error message)
• ONVIF Profile S Compliant
• Use SIP to integrate with Cisco Unified Call Manager and answer calls off-site

Technical Specifications:

• 2 x contact outputs (door release, external signaling)
• 6 x trigger inputs (trigger an outgoing call or answer a call/page)
• Power Source: 802.3af PoE compliant
• Power Draw: 5.28 Watts
• Camera: 1.23 megapixel
• Operating Temperature (C): -40 to +60
• Protection: IP65, IK08
• Flush mounted with included back box, or surface mount with the SBX-IDVF Stainless-Steel surface mount box
• Two year warranty

Dimensions:

• 265 x 150 x 60 (mm hwd)
