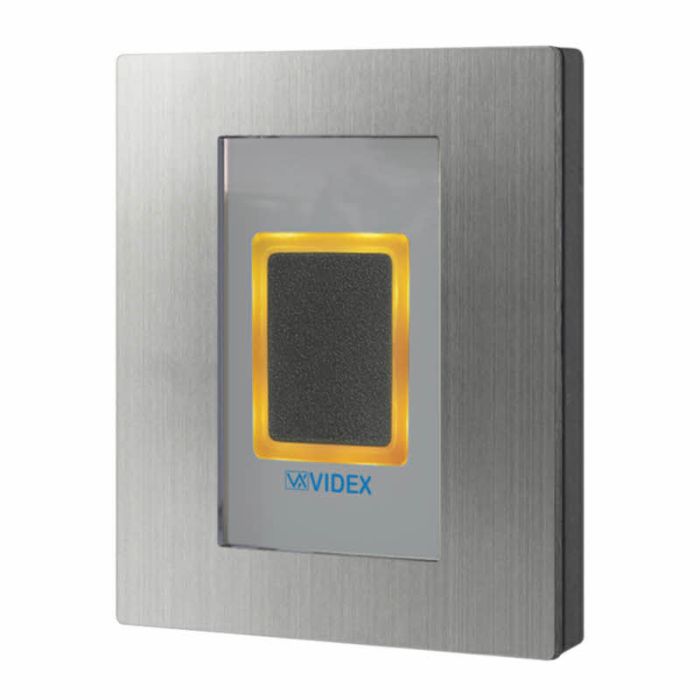

Videx VR4K Series MiAccess Proximity Reader with PC Programming

Videx VR4KMI VR4K Series MiAccess Proximity Reader with Smart Mifare PC Programming and USB Port

The VR4K series (VR4KMI) MiAccess reader is compatible with the full range of 4000 series surface and flush back boxes.

This reader can be programmed and configured directly using the PROA-MS or PROH-MS PC management software (available to download for free from https://software.videxservices.uk) using the micro-USB connection on the back of the reader.

MiAccess fobs and cards are initally registered via the USB desktop reader (PROX-USB) connected to a laptop or PC and then the fob and card data along with reader configuration can be uploaded to the MiAccess reader.

Features:

• VR4K series
• Mifare reader with sector read/write and support for Mifare classic, 1K & 4K card types
• Read range of up to 6cm with an operating frequency of 13.56MHz
• Programming and configuration using PC software
• Firmware upgrades supported via the micro-USB connection

Technical Specifications:

• Operating Voltage: 12Vdc power input
• Current Consumption: 150mA (max.) during operation
• Data Connectivity: micro-USB port for connection to a PC
• Outputs: 1 x built-in relay (2A @ 24Vac/dc) programmable from 1-255 seconds or 0 seconds for ON/OFF toggle mode, 1 x RS485 bus connection for remote Ôtouch to exitÕ button and relay unit (RTTS surface or DINRTT flush)
• Inputs: push button
• Tamper Protection
• Status Indication: Tri-colour halo LED (amber, green and red) and buzzer
• Working Temperature (C): -20 to +50

Dimensions:

• 120 x 103 x 30 (hwd mm)
