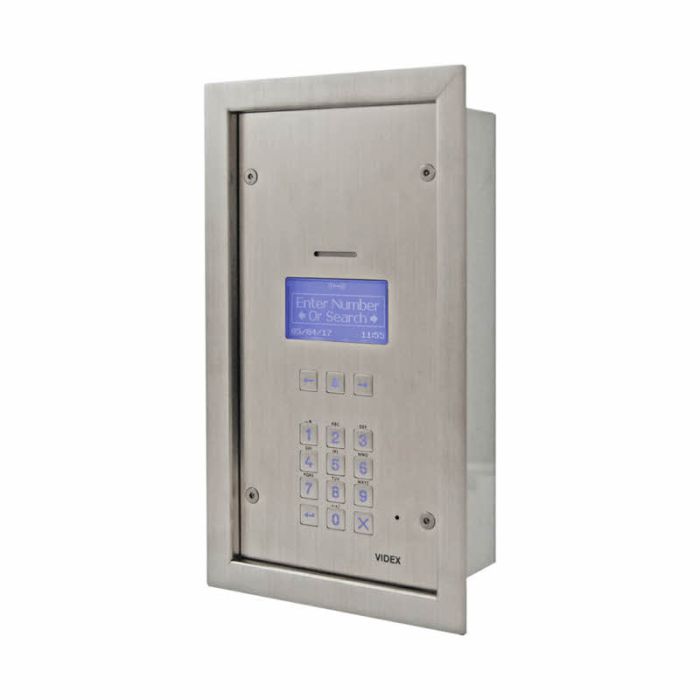

Videx Vandal Resistant Flush Digital GSM with Prox (Name Scroll)

Videx VR4812R/4G Vandal Resistant Digital 4G GSM with Proximity (Name Scroll Buttons). Includes Flush Bezel Back Box

Answer calls from your door or gate from any telephone number including your mobile so you never have to miss that important caller. The digital 4G GSM intercom is available for small or large scale applications with the ability to call up to 750 apartments (users) all with the facility to divert to additional numbers if the first is busy or unanswered.

Programming the digital 4G GSM can be carried out using standard SMS text messages, via the onboard keypad, or via either of the GSM mobile Apps (the SMS Wizard App for users and SMS Wizard PRO App for installers and engineers) and/or the GSMSK PC software including the new remote 'over the air' feature (programming is still carried out using the PC software without the need to actually connect the GSM module directly to a PC via the micro-USB or RS485 connection). The Apps are available to download for free from Google Play (for android devices) or from the App. Store (for iOS devices).

Other features include: integrated proximity access control (for up to 2000 users) and DDA compliant call progress announcement both verbally and shown via the blue back-lit 128x64 pixel graphical LCD display, an exit button input, an auxiliary input and output, a dry contact relay and a trade timeclock input the digital GSM can be powered using 12Vdc.

An event log (up to 8000 stored events) is maintained within the digital 4G GSM module and can be downloaded via the USB port or RS485 bus connection using the GSMSK PC software which also includes many features to simplify the installation and programming process. The events can also be viewed and monitored remotely in real-time using Videx's web browser based events application. These events can be viewed on any device such as a tablet, smartphone or laptop and PC.

Features:

• Program up to 750 apartments (users)
• 4 telephone numbers per apartment (1 primary number and 3 diverts) for the 750 user option
• Dial to open facility for up to 2000 users
• Integrated proximity access control for up to 2000 users
• 750 programmable access codes (1 per user)
• 10 apartment call timebands (9 of which are programmable)
• Up to 10 programmable free access timebands
• Blue back-lit 128x64 pixel graphical LCD display with call progress indication and integrated voice annunciation
• Blue back-lit alpha-numeric keypad for programming and system operation
• Name scroll facility
• Programming by using the on board keypad, by SMS text, GSMSK PC software (including the new "over the air" feature) or the new Videx mobile apps
• On screen programming menus
• 1 x push to exit input
• 1 x auxiliary input and output
• Dry contact relay (CO, NO and NC)
• Micro-USB connection for ease of programming and event log download
• RS485 connection for ease of programming using the GSMSK software or connecting an additional 4850R expansion proximity reader or 4903 keypad
• Compatible with the 2813 remote relay (via the RS485 bus connection)
• Event log feature for up to 8000 events

Techincal Specifications:

• Number of entrances: 1
• Network compatibility: 2G, 3G and 4G networks
• Lock output: Dry contact (C, NO, NC)
• Auxiliary output: 1 x open collector (switched 0V, 150mA max.)
• Auxiliary input: 1 x open collector
• Dial in to open numbers: up to 2000
• Number of apartments (users): 750 (1000 user option also available)
• Divert numbers per apartment: 1 to 3 numbers each
• Proximity access control: up to 2000 users (fobs/cards)
• Programmable access codes: up to 750 (1 per user/apartment)
• Apartment call timebands: 10, 9 of which are programmable
• Free access timebands: 10, all of which are programmable
• Power supply: HDR-15-12 slim line 12Vdc (1.5A) psu
• Power input: 12-14Vdc
• Programming methods: Via onboard keypad, SMS text, GSMSK PC software or VidexÕs smartphone SMS wizard App
• USB connection: Micro USB
• RS485 connection: A, B & 0V (for programming via PC software or used for connecting an additional 4850R expansion proximity module or 4903 keyad and the 2813 remote relay)
• 4G GSM Antennas: 434 antenna, 434/BLOCK antenna, high gain 434/HG/5M (5m cable) and high gain 434/HG/15M (15m cable)
• SIM compatibility: nano size SIM card (12.3mm x 8.8mm)
• Proximity fob compatibility: 955/T, 955/B, 955/R, 955/G and 955/Y
• Proximity card compatibility: 955/C
• Programming software: GSMSK GSM intercom PC programming kit
