Videx Flush MiAccess Proximity Reader with PC Programming - White
£204.67
£170.56
SKU
V-DINMTPXW-MF-SA
- This product is available to order. The lead time is normally 3 – 5 working days.
- An accurate despatch date will be confirmed with you once order is received by our sales team (during office hours).
Free Delivery on this product

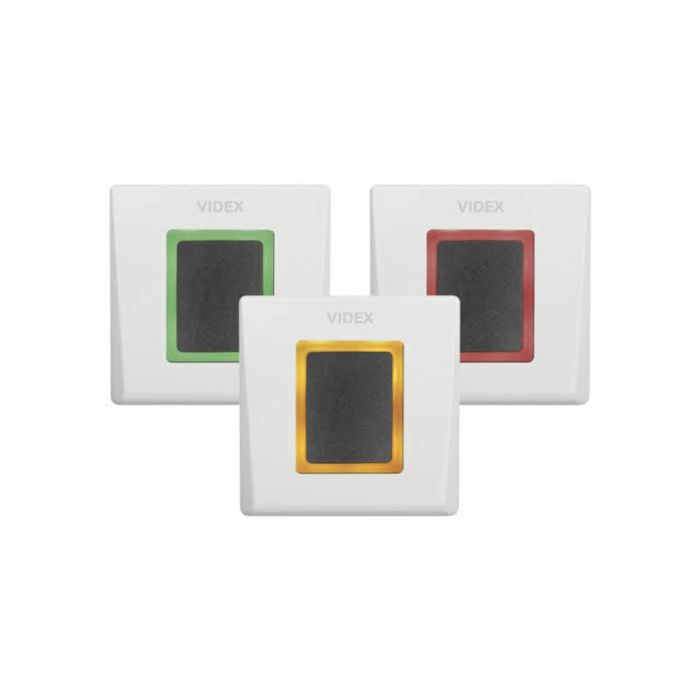

Videx V-DINMTPXW-MF-SA flush standalone Mifare proximity reader in white finish. Internal use only with micro-USB and RS485.
Videx V-DINMTPXW-MF-SA Flush MiAccess Mifare Proximity Reader - White
The Videx V-DINMTPXW-MF-SA is a flush-mounted standalone offline Mifare proximity reader in white finish, part of the MiAccess access control range. It is designed for internal use only and fits a standard UK single gang flush back box. Access rights are written directly to individual user cards, eliminating the need for an online connection between readers. Programming and configuration are carried out via the free PROA-MS or PROH-MS PC software using the micro-USB port on the rear of the reader. User fobs and cards are initially registered via the PROX-USB desktop reader connected to a PC, then uploaded to the V-DINMTPXW-MF-SA.
Key Features
- Flush mounting for standard UK single gang back box - internal use only
- Mifare reader with sector read/write supporting Mifare Classic 1K and 4K card types
- Read range up to 6 cm at 13.56 MHz operating frequency
- Unlimited user capacity with up to 3500 events logged
- Blacklist feature for lost or stolen cards (up to 500 cards)
- Scheduled activation with 4 definable lock/unlock actions by time and day
- Built-in relay output (2A at 24Vac/dc) with programmable time 1-255 seconds or toggle mode
- RS485 bus connection for remote touch to exit button and relay unit (RTTS or DINRTT)
- Micro-USB port for PC programming, event collection and firmware upgrades
- Tri-colour halo LED (amber, green, red) and buzzer indication
- Tamper protection
- Free PROA-MS and PROH-MS PC software
Technical Specifications
- Voltage: 12Vdc
- Current draw: 150mA max during operation
- Operating frequency: 13.56 MHz
- Read range: Up to 6 cm
- Relay output: 1 x built-in relay, 2A at 24Vac/dc
- Relay time: 1-255 seconds or 0 for toggle mode
- User capacity: Unlimited
- Event log: Up to 3500 events
- Blacklist capacity: Up to 500 cards
- Data connectivity: Micro-USB port
- Bus connection: RS485
- Inputs: Push button (PTE)
- Operating temperature: -20 to +50 degrees C
- Finish: White
- Mounting: Flush - standard UK single gang box
- Dimensions: 86 x 86 x 40 mm (W x H x D)
- Usage: Internal use only
