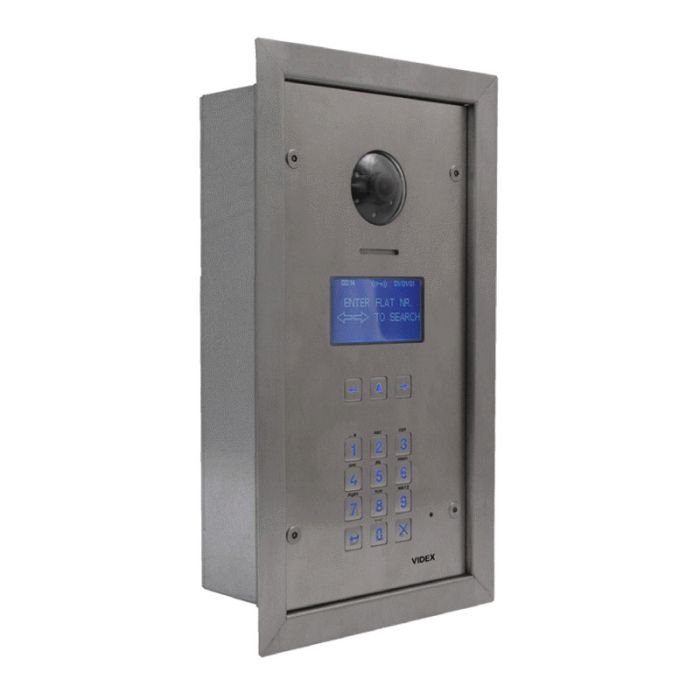

Videx Digital VX2200 Flush VR Audio Panel (A-F)

Videx 4212/UK Digital VX2200 Flush VR Audio Panel (A-F)

The 4212 series vandal resistant digital panel range compliments the Videx VX2200 digital system (2 wire bus). The panel is manufactured from 2.5mm thick brushed stainless steel and comes with an alpha-numeric keypad (A-F) that is also back lit.

All panels incorporate features from previous digital panels (storing up to 998 users, allowing each user to have a unique 3-6 digit access code, trade facility, multiple text language display and speech board annunciation) and also include additional features never seen before on the VX2200 digital system.

All models include a larger 128x64 pixel graphical LCD display, which is back lit blue providing clear visual messages for the user of the system. Also integrated into the panel is a proximity reader, allowing a number of proximity key fobs to be stored and used individually or in combination with the access code.

With an increased memory capacity compared to previous models the panels can store up to 998 users, up to 2,800 access codes, up to 2,800 proximity key fobs and up to 4,000 events.

Features:

• Up to 998 apartments.
• Bezel surround.
• Back lit alpha-numeric (A-F) keypad.
• Blue back lit 128 x 64 pixel graphical LCD display providing clear visual messages.
• Speech annunciation call progress.
• Programmable trade facility.

Technical Specifications:

• Programmable door access codes (up to 2,800 codes).
• Integrated proximity key fob reader (up to 2,800 key fobs).
• Combined door access code and proximity key fob programming.
• Wiegand output to allow connection of third party access control.

Dimensions:

• Panel: 280 x 140 (hw mm)
• Bezel: 319 x 179 x 80 (hwd mm)
