Trimec 113101-000 | ES3100 ANSI Strike Long Faceplate, 12V DC
£762.72
£635.60
SKU
113101-000
- This product is available to order. The lead time is normally 7 – 9 working days.
- An accurate despatch date will be confirmed with you once order is received by our sales team (during office hours).
Free Delivery on this product

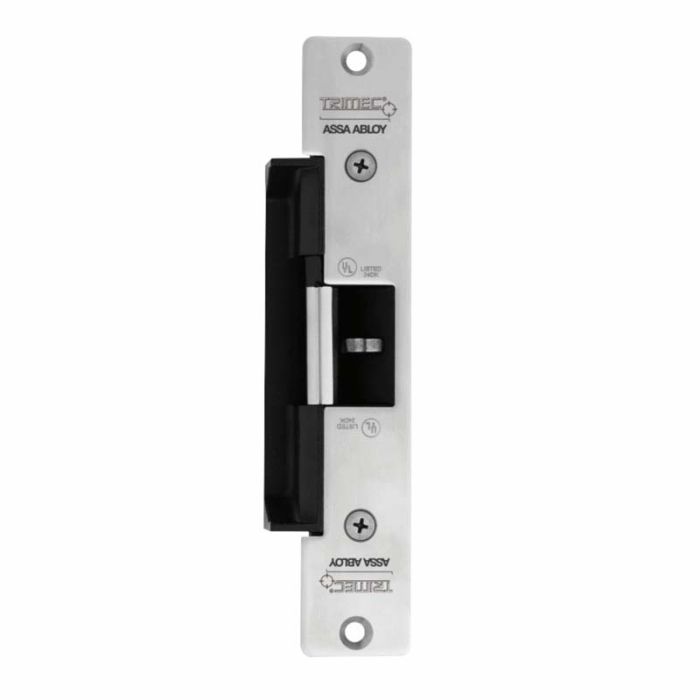

Trimec 113101-000 | ES3100 ANSI Strike Long Faceplate, 12V DC
Trimec 113101-000 | ES3100 ANSI Strike Long Faceplate, 12V DC
Designed for high security the 113101-000 is made from highly durable stainless steel and is an ANSI strike.
Flexible in function it can easily be changed from fail open to fail locked and is additionally reversible, meaning it can be installed on the right or left hand side of the door.
Features:
- 1 million cycles endurance rating
- Stainless Steel locking pins
- Continuously rated solenoid
- Optional mounting kit
Technical Specifications:
- Voltage: 12V DC
- Current: 175 mA @ 12V DC
- Monitoring: Solenoid Monitor - 1 amp NO/NC microswitch, Door / Latch - 1 amp NO/NC microswitch
- Holding Force: 850kg static strength rating
- Endurance: Cycle tested to 1,000,000 operations
- Environment: Operational temperature range -20 C to +60 C
- Keeper: Stainless Steel
- Latch: Suit 18mm latch bolt with 3mm door gap
- Approved to UL1034 (highest level)
- CE Approved
| Brand | Trimec |
|---|---|
| Voltage | 12.0 Volt DC |
| Type of Device | Mortice latch release |
