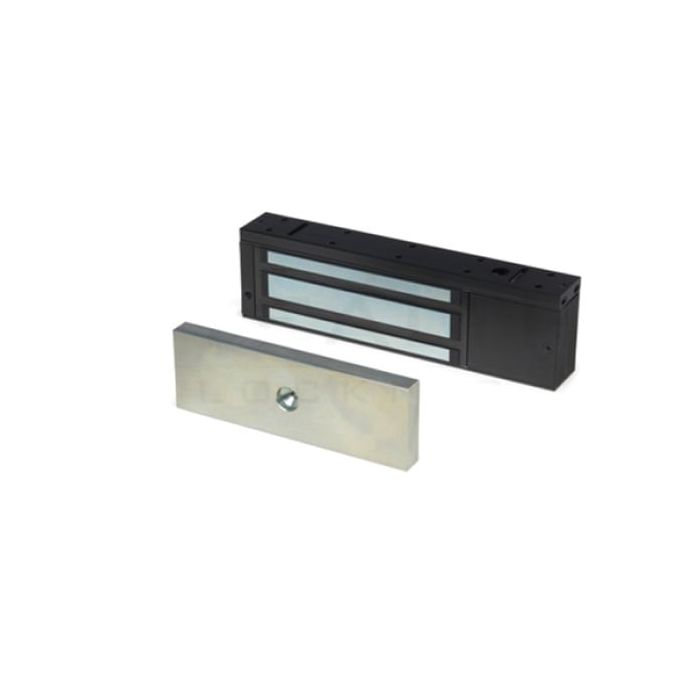

STP STEALTH20DS Black Standard Monitored Maglock with Door Status
£207.36
£172.80
SKU
STEALTH20DS
- This product is available to order. The lead time is normally 1 – 3 working days.
- An accurate despatch date will be confirmed with you once order is received by our sales team (during office hours).
Free Delivery on this product
STP STEALTH20DS Black standard monitored maglock with door status monitoring. Surface mount, dual voltage 12/24Vdc, black finish.
STP STEALTH20DS Black Standard Monitored Maglock with Door Status Monitoring
The STP STEALTH20DS is a black finished standard single maglock featuring both lock monitoring and door status monitoring. This dual voltage electromagnetic lock is designed for installations where a discreet, stealth appearance is required alongside full monitoring capability.
Surface mounted to the door frame, the STEALTH20DS provides lock status and door position feedback for integration with access control panels and alarm systems. The black anodised finish makes it ideal for dark framed doors where a standard silver maglock would be visually intrusive. Wiring follows standard maglock conventions with additional connections for the door status reed switch output.
About This Product
The STP STEALTH20DS is a black finished standard single maglock with both lock monitoring and door status monitoring, suited to commercial and residential access control installations. It is designed for installers who need full monitoring feedback in a discreet black housing. Choose this maglock where aesthetics demand a dark finish and the system requires both lock state and door position reporting.
Key Features
- Black anodised aluminium finish for discreet installation
- Lock monitoring output for access control integration
- Door status monitoring via integrated reed switch
- Dual voltage 12/24Vdc selectable
- Surface mount fixing
- Standard single maglock body
Technical Specifications
- Voltage: 12Vdc/24Vdc selectable
- Monitoring: Lock status and door status
- Finish: Black anodised aluminium
- Mounting Type: Surface mount
- Lock Type: Electromagnetic maglock (single)
Common Questions
- What is the difference between the STEALTH20DS and the STP-EM02DS? The STEALTH20DS offers the same lock and door status monitoring functionality but in a black finish, whereas the EM02DS is silver anodised.
- Can this be used with a Z and L bracket? Yes, standard Z and L brackets compatible with standard sized maglocks can be used.
Compatibility
Compatible with standard maglock Z and L bracket sets. Integrates with access control panels accepting lock monitoring and door status inputs.
| Brand | STP |
|---|
