SRS Unmonitored Door Handle Magnet with 2 x 545KG Holding Force

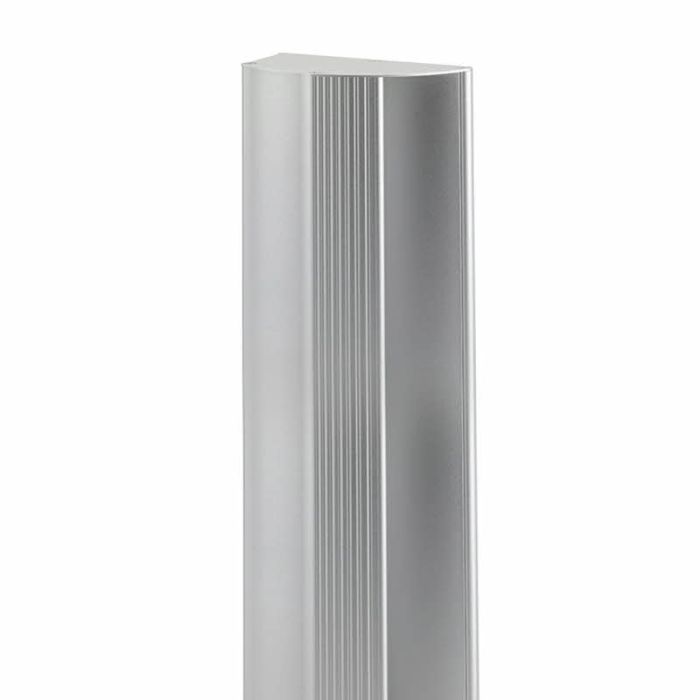

SRS PH900 Unmonitored Door Handle Magnet

Unmonitored fail-safe door handle magnet with holding force of 2 x 600lbs (545Kg). Manufactured from aluminium and 12/24Vdc operating voltage.

This door handle with magnet is designed for use on inwards opening doors, where the handle becomes the locking device. The full door height handle has two magnetic locks which are fitted to the frame and two armature plates built into the handle.

Features:

• Aluminium
• Unmonitored
• Fail-Safe (Power to Lock)
• Holding force 2 x 600lbs (545Kg)

Technical Specifications:

• Operating voltage: 12~24Vdc
• Voltage tolerance: ±15%
• Current draw: 2 x 500mA at 12Vdc
• Operating temperature (C): -10 to +55
• LockÕs surface temperature: Current temperature ±20% (when power is on)
• Magnetic bond sensor monitor output remotely monitors the door lock or unlock status. (N.C. Output-Door opened; N.O. Output-door closed) (SPDT rated 3A at 12Vdc)
• Humidity: 0~95% non-condensing
• Special Zinc finishes for magnet and armature plate

Dimensions:

• 2503 x 124 x 35 (hwd mm)
