SRS Fail-Safe/Fail-Secure ANSI Style Monitored Electric Release, 24Vdc
£112.06
£93.38
SKU
GK310MLS-24
- This product is available to order. The lead time is normally 2 – 4 working days.
- An accurate despatch date will be confirmed with you once order is received by our sales team (during office hours).
Free Delivery on this product

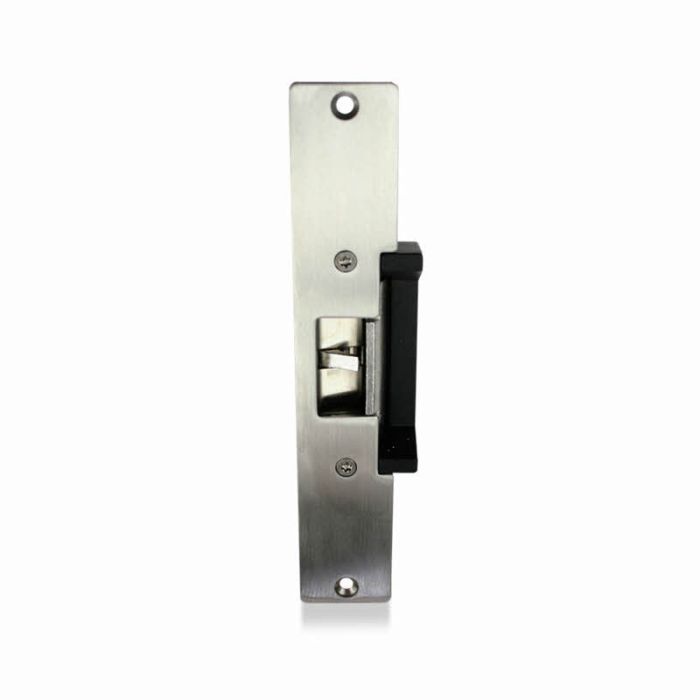

SRS GK310MLS-24 Monitored ANSI style electric release with 24Vdc operating voltage. Fail-safe/Fail-secure (selectable) and supplied with long and short plates
SRS GK310MLS-24 Fail-Safe/Fail-Secure ANSI Style Monitored Electric Release
Monitored ANSI style electric release with 24Vdc operating voltage.
Fail-safe/Fail-secure (selectable) and supplied with long and short plates.
Features:
- Fail-Safe/Fail-Secure (Selectable)
- Supplied with long and short plates
- ANSI style electric release
Technical Specifications:
- Operating voltage 24Vdc
- Voltage tolerance: ±15%
- Current draw: 0.25A at 12Vdc, 0.15A at 24Vdc
- Operating temperature (C): -10 to +45
- LockÕs surface temperature: Current temperature ±20% (when power is on)
- Sensor switch monitored output indicates lockset locked or unlocked status (SPDT rated 2A at 125Vdc)
- Humidity: 0~95% non-condensing
- Horizontal or vertical installation
- Tested to 1,000,000 cycles
- 2000lbs jaw strength pull testing
Dimensions:
- 202 x 36.5 x 17 (hwd mm)
| Brand | SRS |
|---|---|
| Strike Operation | Fail Locked (Fail secure) |
| Voltage | 24.0 Volt DC |
| Type of Device | Mortice latch release |
| Finish | Stainless steel |
