SRS External Vandal Resistant Fail-Safe Micro Magnet, Surface
£87.91
£73.26
SKU
EM10003S12
- This product is available to order. The lead time is normally 2 – 4 working days.
- An accurate despatch date will be confirmed with you once order is received by our sales team (during office hours).
Free Delivery on this product

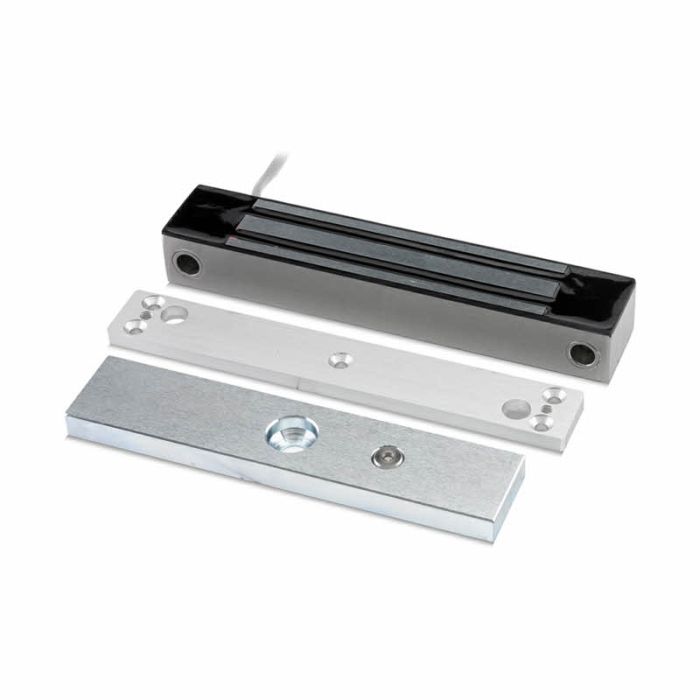

SRS 10003S Vandal resistant fail-safe micro maglock with holding force up to 300lbs (136Kg). Suitable for surface mounting on external applications
SRS 10003S External Vandal Resistant Fail-Safe Micro Magnet, Surface Mount
Vandal resistant fail-safe micro maglock with holding force up to 300lbs (136Kg). It also has a 12Vdc operating voltage.
This magnetic lock is manufactured from stainless steel and has a IP65 weather resistant rating making it suitable for surface mounting on external applications.
Features:
- Surface mount
- Stainless Steel
- Fail-Safe (Power-to-Lock)
- Weather resistant: IP65
- Vandal resistant
- Holding force up to 300lbs (136Kg)
Technical Specifications:
- Operating voltage: 12Vdc
- Voltage tolerance: ±15%
- Current draw: 300mA at 12Vdc (at temperature 20C)
- Operating temperature (C): -10 to +55
- LockÕs surface temperature: Current temperature ±20% (when power is on)
- Humidity: 0~95% non-condensing
- Special Zinc finishes for magnet and armature plate
- Weight: 1.5kg (approx)
Dimensions:
- 42 x 250 x 26 (hwd mm)
| Brand | SRS |
|---|---|
| Fitting | Surface Mount |
| Strike Operation | Fail Open (Failsafe) |
| Voltage | 12.0 Volt DC |
| Type of Device | Magnetic lock (micro < 100 kg) |
| Fits into (onto) | Aluminium frame |
| Finish | Anodised Aluminium |
