SRS Fail-Safe Electric Dropbolt for Glass Doors, 12Vdc

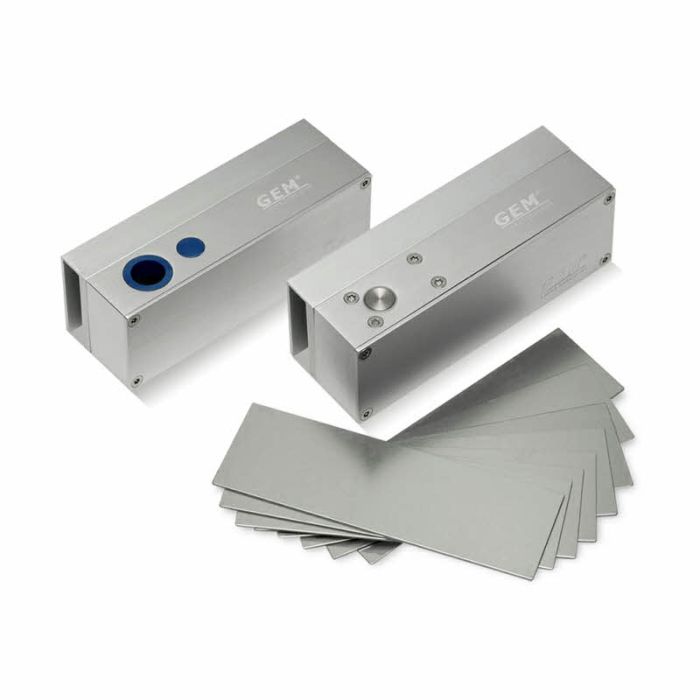

SRS EB300VGL Fail-Safe Electric Dropbolt for Glass Doors, 12Vdc

Fail-safe electric dropbolt designed for application on glass doors with 12vdc operating voltage.

Features:

• Fail-Safe (Power to Lock)
• Glass Doors
• Auto-relocking timer delay: 0, 3, 6 or 9 seconds

Technical Specifications:

• Operating voltage 12Vdc
• Voltage tolerance: ±10%
• Current draw: Pull in 0.9A, Holding 0.3A at 12Vdc (at temperature 20C)
• Operating temperature (C): -10 to +45
• LockÕs surface temperature: Current temperature ±20% (when power is on)
• Door position status output indicates door opened or closed status (Reed rated 0.25A at 30Vdc)
• Humidity: 0~95% non-condensing
• Horizontal or vertical installation
• Tested to 500,000 cycles
• Weight: 1.7kg (approx)

Dimensions:

• 166 x 56 x 32 (hwd mm)
