SRS Stainless Steel Fail Safe Electric Dropbolt, 12-24Vdc
£195.35
£162.79
In stock
SKU
EB195
Free Delivery on this product
SRS EB195 Fail Safe Electric Dropbolt with Operating Voltage of 12-24Vdc and manufactured from stainless steel

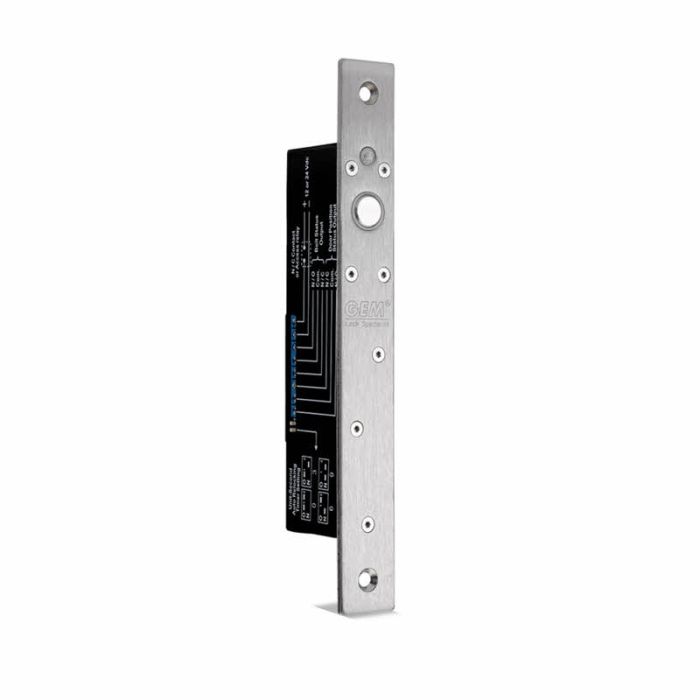

SRS EB195 Stainless Steel Fail Safe Electric Dropbolt, 12-24Vdc
The EB195 is an electric dropbolt with operating voltage of 12-24Vdc.
It is manufactured from stainless steel and is fail safe (power to lock).
Features:
- Operating voltage 12~24Vdc
- Stainless Steel
- Fail-Safe (Power to Lock)
- Built-in logical circuitry
- Vandal resistant
- Auto-relocking timer delay: 0, 3, 6 or 9 seconds
Technical Specifications:
- Voltage tolerance: ±10%
- Current draw: Pull in 0.9A, Holding 0.3A at 12Vdc (at temperature 20C)
- Operating temperature (C): -10 to +45
- LockÕs surface temperature: Current temperature ±20% (when power is on)
- Magnetic bolt status output indicates bolt locked or unlocked status (SPDT rated 3A at 30Vdc)
- Humidity: 0~95% non-condensing
- Horizontal or vertical installation
- Faceplate material: Stainless Steel
- Tested to 500,000 cycles
Dimensions:
- 185 x 25 x 41 (hwd mm)
| Brand | SRS |
|---|---|
| Fitting | Mortice (flush) |
| Strike Operation | Fail Open (Failsafe) |
| Voltage | 24.0 Volt DC |
| Type of Device | Solenoid bolt |
| Finish | Stainless steel |
