SRS Door Access Control Keypad (Vandal Resistant with 110 codes)

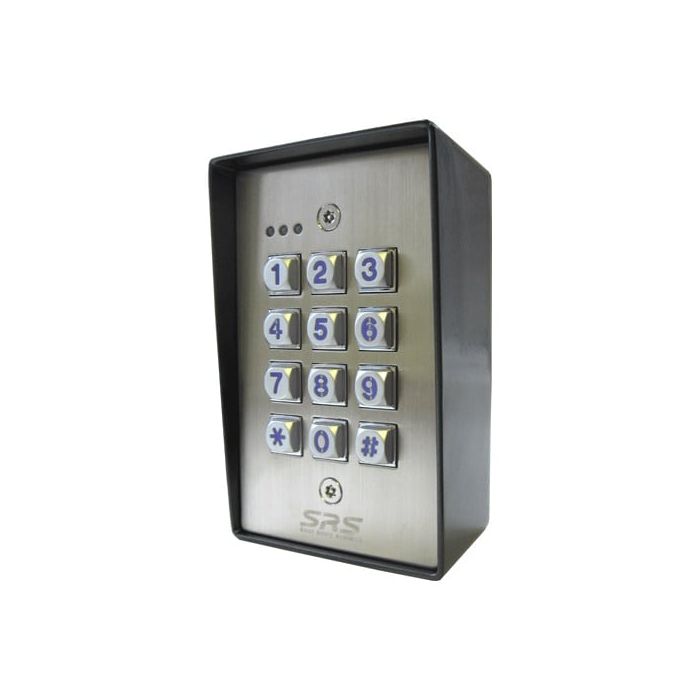

SRS DC60SS Door Access Control Keypad (Vandal Resistant)

The DC60SS is our best selling access control keypad for outdoor installation, featuring a modern, vandal resistant design with illuminated buttons.

The digital keypad has two relay outputs to operate a car gate or pedestrian gate with individual pin codes, making gates secure but still very accessible. You can set up a relay output to operate with a time delay or permanent latch. Each relay has an LED confirmation when activated (green or red).

Installation is very easy, simply connect 12V - 24V / AC or DC for power and 2 wires to the lock (or to the gate controller).

Also available as a complete door access control kit with power supply and lock release for most types of locks.

Features:

• Easy to install
• Code capacity: 110 codes (4 - 8 digits)
  • Relay 1: 100 Codes
  • Relay 2: 10 Codes
• Reassurance beep when key is pressed
• Programmable lock time (1 - 999 sec.)
• Non volatile data storage (codes are retained in the event of power failure)
• Two different user modes available (Single-User / Multi-User)

Technical Specifications:

• Housing: Cast metal with brushed Stainless Steel fascia.
• Environment: Indoor or outdoor use (IP54 design).
• IP Rating: 54
• Temperature: -15 to +55 C
• Voltage: 12 to 24 V AC/DC
• Current: 8 mA in standby.
• Door Capacity: 2
• Inputs: Exit button requests with delay.
• Outputs: 2 x Voltage free relay contact, max 1A, 28 V DC.
  • Relay 1: 5A max
  • Relay 2: 1A max

Dimensions:

• 125 x 80 x 50 (hwd mm)

Single User Mode:

• 1st Single User Code for relay output 1
• 2nd Single User Code for relay output 2

Multi-User Mode:

• 100 User Codes in Group 1 for Relay Output 1
• 10 User Codes in Group 2 for Relay Output 2

The DC60SS access control keypad is made with SRS technology, and still a popular choice against other keypads for doors and gates.
