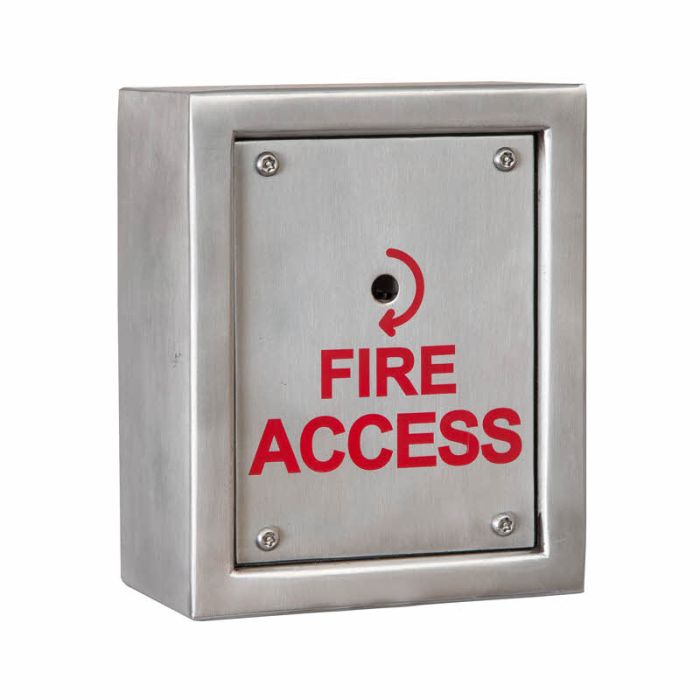

RGL stainless steel Fireman Switch in a surface housing

RGL FMS-SURF Surface Mounted Stainless Steel Firemans Switch

The RGL FMS-SURF is a surface mounted firemans switch in a stainless steel housing, designed to allow firefighters to quickly disconnect power in an emergency. It features NO/COM/NC changeover contacts with a switching capacity of 5 A at 125 VAC or 3 A at 250 VAC. The unit is secured with tamper proof fixings and operates via a drop key mechanism. The key is not included with the unit and must be ordered separately as the FMS-KEY. This switch is commonly installed in communal entrance areas of apartment blocks, commercial premises and public buildings where emergency services require rapid mains isolation of door entry or access control systems.

Key Features

• Stainless steel surface mount housing
• NO/COM/NC changeover contacts
• Tamper proof fixings
• Drop key operation (key sold separately as FMS-KEY)
• Allows firefighters to quickly disconnect power
• Suitable for communal areas and public buildings

Technical Specifications

• Contacts: NO/COM/NC changeover
• Switching capacity: 5 A at 125 VAC / 3 A at 250 VAC
• Finish: stainless steel
• Mounting: surface
• Weight (unboxed): 908 g

Dimensions

• 125 x 155 x 76 (hwd mm)
