RGL Slimline Magnet with Aluminium cover housing - 280kg
£168.06
£140.05
In stock
SKU
DHM600
Free Delivery on this product
RGL DHM600 Slimline Magnet with Aluminium cover housing - 280kg holding force

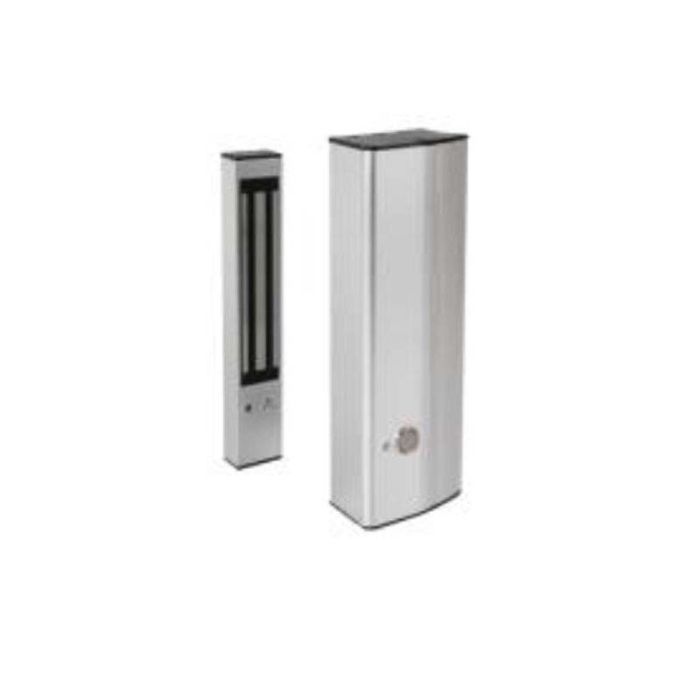

RGL DHM600 slimline magnet with aluminium housing
The RGL DHM600 is a slimline magnet with an aluminium cover housing and a release button. It offers 600lbs (280kg) of holding force and has built in protection.
Can be used with most access control/entry systems. Suitable for wooden, metal or glass doors.
Features
- Slimline/mini magnet
- Aluminium housing
- Built in time delay 0/2.5/5/9 seconds
- Built in exit button
- Built in surge protection
Technical Data
- 12VDC @ 500mA or 24VDC @ 250mA
- 600lbs (280kg) holding force
- 274 x 46 x 30 (hwd mm) Magnet
- 300 x 92 x 58 (hwd mm) Handle
Dimensions
| Brand | RGL |
|---|---|
| Strike Operation | Fail Open (Failsafe) |
| Voltage | 24.0 Volt DC |
| Type of Device | Magnetic lock (mini - 280 kg) |
| Fits into (onto) | Glass frame |
| Finish | Anodised Aluminium |
