Hikvision 6 Button Vandal Resistant Video Panel with Prox Cutout

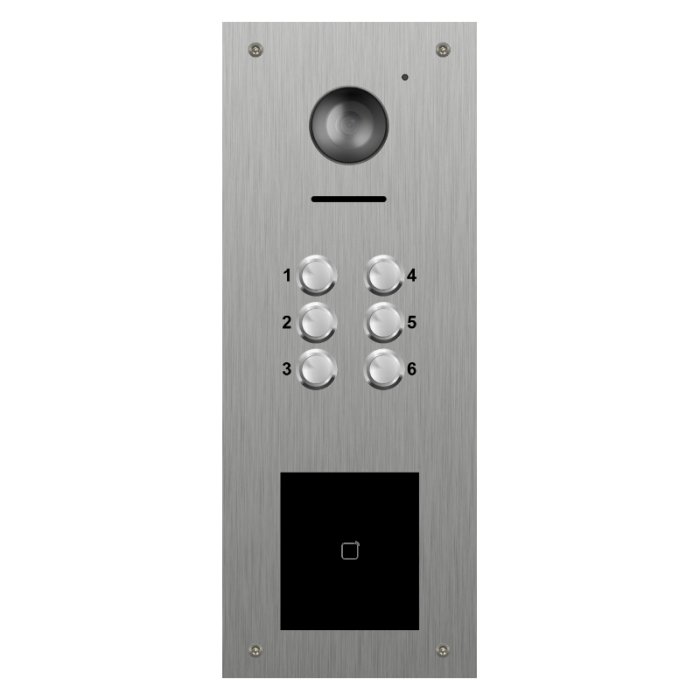

Hikvision DS-4506/0P 6 Button, Vandal Resistant Stainless Steel Engravable Video Door Entry Panel with Proximity Reader Cutout for Flush Mounting

The Hikvision DS-4506/0P is a six button, vandal resistant door entry intercom panel with proximity reader cutout. It is ideal for an apartment block or office and is designed to endure frequent use from visitors. This range is configurable to help you meet the toughest job specifications.

Every panel from the plate to the backbox, every nut, bolt and screw is manufactured from BS316 stainless steel which is 2mm thick (14g). BS316 marine grade stainless steel is built for maximum corrosion protection in comparison to other grades of stainless steel. This is particularly beneficial for installations in coastal areas.

This panel features a cutout to suit the Hikvision DS-KD-M proximity reader module (sold separately). This means that the keypad can be installed into the door entry panel for access control.

The range of Hikvision vandal resistant panels are suitable for external use. The panel can be laser engraved in black or any colour (SKU = ENG) to your requirements.

For more information on how you can add engraving to your panel visit

Please note: Panel module components are not included and must be purchased separately.

Features:

• Flush mounting
• Vandal resistant
• Customisable laser engraving
• Cutout to suit DS-KD-M proximity reader module for access control

Technical Specifications:

• Panel Range: HIK Vandal Resistant
• Panel Cabling: HIK IP

Dimensions:

• Panel: 350 x 136 (hw mm)
• Back Box: 330 x 116 x 50 (hwd mm)
