SRS 12/24V DC Shearlock with up to 1200KG Holding Force

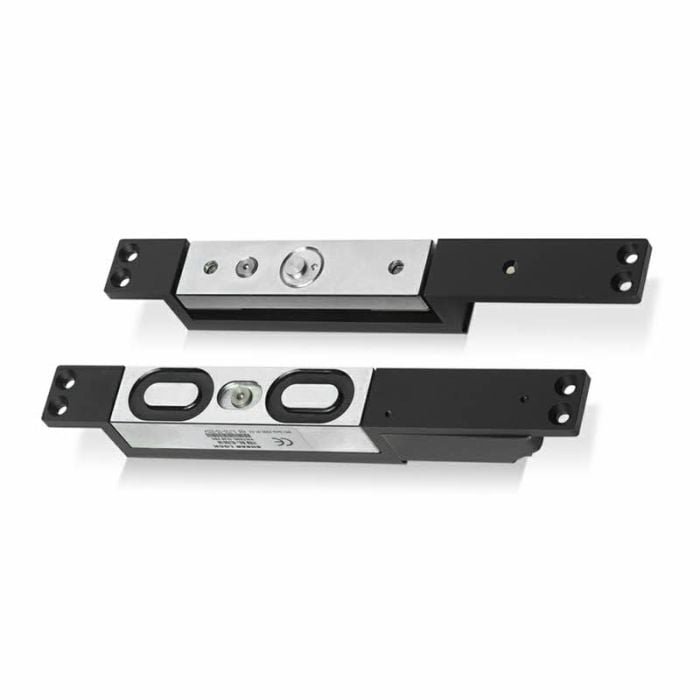

SRS GS705-35 12/24V DC Shearlock with up to 1200KG Holding Force

Shearlock with operating voltage of 12-24Vdc and holding force in shear up to 2,700lbs (1,226Kg).

Features:

• Special Zinc finishes for magnet and armature plate
• Housing black powder coated
• Holding force in shear up to 2,700lbs (1,226Kg)
• Locking time delay: 1 to 6 seconds (adjustable)

Technical Specifications:

• Operating voltage 12~24Vdc
• Voltage tolerance: ±10%
• Current draw: Pull in: 2.2A, Holding: 0.5A at 12Vdc/Pull in: 1.4A, Holding: 0.3A at 24Vdc
• Operating temperature (C): -30 to +55
• LockÕs surface temperature: Current temperature ±20% (when power is on)
• Magnetic bond sensor monitor output remotely monitors the door lock or unlock status. (N.C. Output-Door opened; N.O. Output-door closed) (SPDT rated 1A at 30Vdc)
• Humidity: 0~95% non-condensing
• Horizontal or vertical installation

Dimensions:

• 30 x 267 x 34 (hwd mm
