SRS Stainless Steel Minature Waterproof Magnetic Lock
£87.71
£73.09
SKU
GL80F
- This product is available to order. The lead time is normally 2 – 4 working days.
- An accurate despatch date will be confirmed with you once order is received by our sales team (during office hours).
Free Delivery on this product
SRS GL-80F Minature waterproof magnetic lock manufactured from brushed stainless steel and with a IP67 weather resistant rating

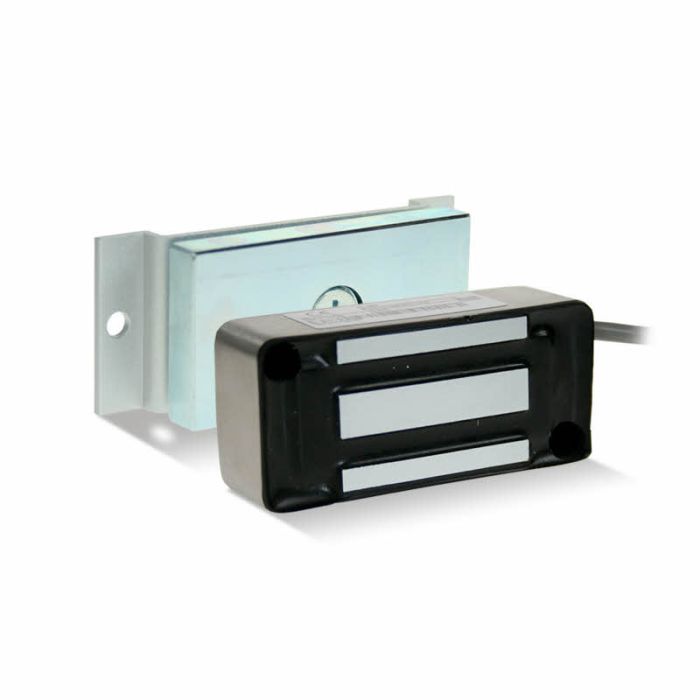

SRS GL-80F Minature Waterproof Magnetic Lock
Minature waterproof magnetic lock manufactured from brushed stainless steel and with a IP67 weather resistant rating.
This magnet has a holding force up to 80lbs (36kg) and 12 or 24Vdc operating voltage.
Features:
- Brushed Stainless Steel
- Holding force up to 80lbs (36kg)
- IP67 Weather resistant
Technical Specifications:
- Operating voltage: 12 or 24Vdc
- Voltage tolerance: ±15%
- Current draw: 140mA at 12Vdc,170mA at 24Vdc
- Operating temperature (C): -10 to +55
- LockÕs surface temperature: Current temperature ± 20% (when power is on)
Dimensions:
- 70 x 26 x 38 (hwd mm)
Brand | SRS |
---|---|
Fitting | Surface Mount |
Voltage | 12.0 Volt DC |
Type of Device | Magnetic lock (micro < 100 kg) |
Finish | Stainless steel |
