SRS Monitored Mini Stainless Steel Magnetic Lock, 12V DC

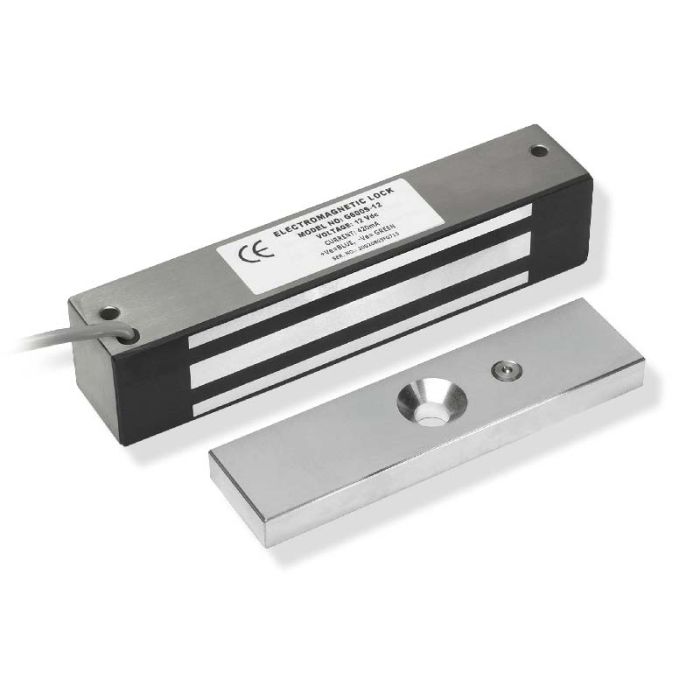

SRS G600M Monitored Mini Stainless Steel Magnetic Lock, 12V DC

Monitored mini stainless steel magnet with a holding force up to 600lbs (272kg).

The G600M is a vandal resistant maglock with an operating voltage of 12V DC. It also has a IP65 rating making it weather resistant.

Magnetic locks operate as fail safe devices, when power is lost the door will open as there are no moving mechanisms involved. The lock requires DC power continuously to operate.

Magnetic locks can be paired with press to exit buttons, break glass units and other access control systems such as proximity readers.

Features:

• Monitored
• Stainless Steel
• Weather resistant: IP65
• Vandal resistant
• Holding force up to 600lbs (272kg)
• Special Zinc finishes for magnet and armature plate

Technical Specifications:

• Operating voltage: 12Vdc
• Voltage tolerance: ±15%.
• Current draw: 500mA at 12Vdc, 250mA at 24Vdc (at temperature 20C).
• Operating temperature (C): -10 to +55
• LockÕs surface temperature: Current temperature ±20% (when power is on).
• Magnetic bond sensor monitor output remotely monitors the door lock or unlock status. (N.C. Output-Door opened; N.O. Output-door closed) (SPDT rated 0.25A at 12Vdc).
• Humidity: 0~95% non-condensing.

Dimensions:

• Magent: 45 x 203 x 40 (hwd mm)
• Armature Plate: 45 x 185 x 14 (hwd mm)
