SRS Reversible Rim Mounted Electric Release, 24 Vdc
£92.22
£76.85
SKU
ER350-24
- This product is available to order. The lead time is normally 2 – 4 working days.
- An accurate despatch date will be confirmed with you once order is received by our sales team (during office hours).
Free Delivery on this product

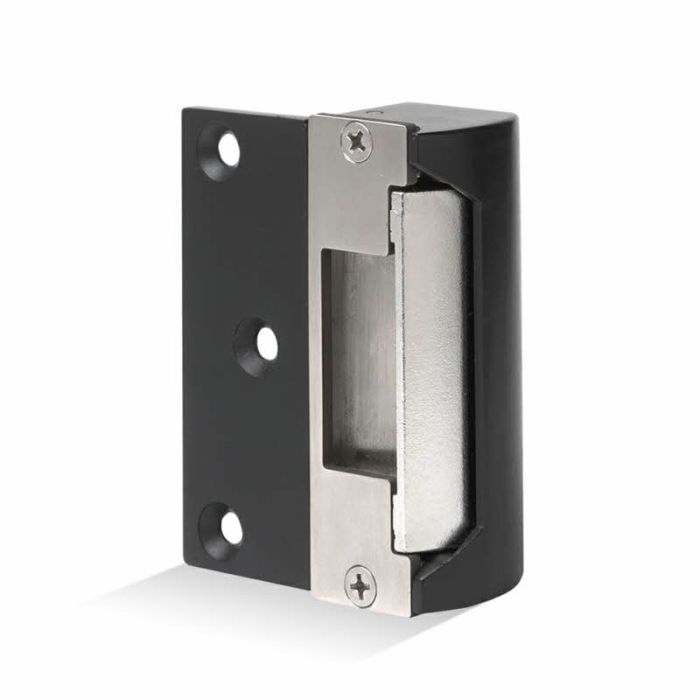

SRS ER350-24 Fail-Safe/Fail-Secure (Selectable) Rim Mounted Electric Release with 24 Vdc Operating Voltage
SRS ER350-24 Fail-Safe/Fail-Secure Rim Mounted Electric Release, 24 Vdc
The ER350 is a surfaced mounted electric strike which is designed for use with night latch locks (without deadbolt) having up to 12 mm throw (distance the bolt travels) latchbolt.
The units are designed for use with most hollow metal frames, aluminium frames and wood frames. The stainless steel plate ensures strength and long life.
Features:
- Operating voltage 24Vdc
- Fail-Safe/Fail-Secure (Selectable)
- Rim mounted release
Technical Specifications:
- Voltage tolerance: ±15%. Current draw: 0.25A at 12Vdc, 0.15A at 24Vdc (at temperature 20C)
- Operating temperature (C): -10 to +45
- LockÕs surface temperature: Current temperature ±20% (when power is on)
- Humidity: 0~95% non-condensing
- 2000lbs jaw strength pull testing
- Tested to 1,000,000 cycles
Dimensions:
- 85 x 62 x 32 (hwd mm)
| Brand | SRS |
|---|---|
| Fitting | Surface Mount |
| Strike Operation | Fail Locked (Fail secure) |
| Voltage | 24.0 Volt DC |
| Type of Device | Rim Lock Release |
| Fits into (onto) | Timber frame |
