Midi magnet


Model:EM350

£59.40 Inc VAT
£49.50 Ex VAT£100.01


Need it fast?
Call us now
0208 621 6210
12650

Product Attributes

Voltage

12.0 V DC
24.0 V DC

Type of Device

Magnetic lock (midi)

Fitting

Surface mount

Brand

Gianni


Description

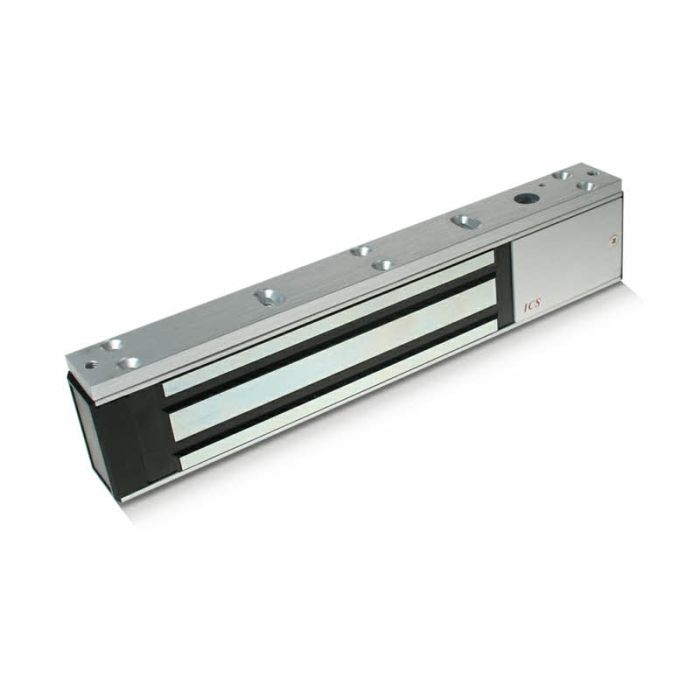

EM350 - Midi magnet

The EM-350 series are a high quality range electromagnetic locks . They feature a special surface mounting plate design and have a holding force up to 800 lbs . They operate on either 12V or 24V input voltage. It is recommended that the applications of EM-350 series be in places where require a higher level of access control such as fire doors and emergency exits. The EM-350 series are made for out-swing doors.

Installation on in-swing doors , narrow door frames or glass doors requires the use of additional brackets. Our locks are supplied with fittings and can be used on wooden , metal or glass doors.

  • Operating Voltage: 12 or 24Vdc
  • Aluminium
  • Current draw: 500mA at 12Vdc 250mA at 24Vdc (at temperature 20¡C)
  • Magnetic bond sensor monitor output remotely monitors the door lock or unlock status.
  • (N.C. Output-Door opened; N.O. Output-door closed) (SPDT rated 3A at 12Vdc)
  • Operating temperature: -10 to 55¡C (14 to 131¡F)
  • Humidity: 0 to 95% non-condensing
  • LockÕs surface temperature: Current temperature ±20% (when power is on)
  • Holding force: Up to 850lbs (386g)
  • Weight: 5.0kg (approx)
