Fermax Skyline Wiegand Keypad for Access Control

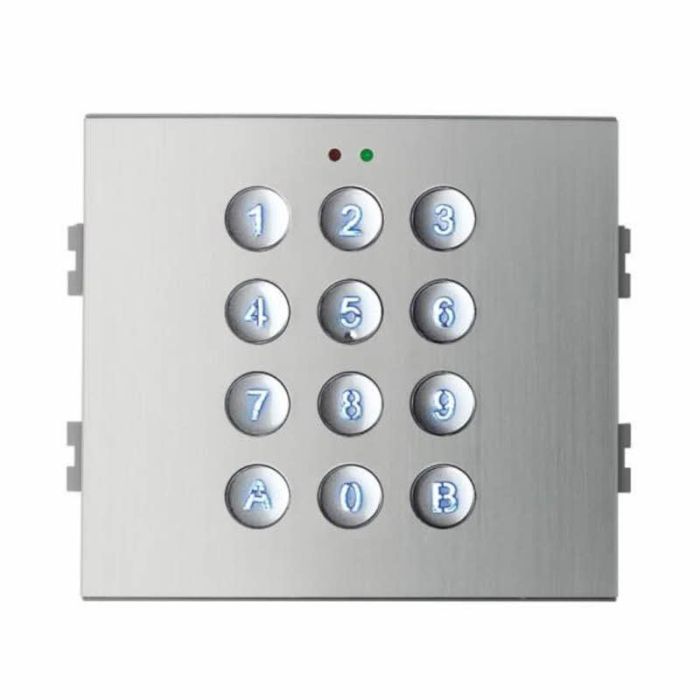

Fermax F-5191 Skyline Wiegand Keypad for Centralised Access Control

The Fermax F-5191 is a Wiegand output digital keypad in the Skyline modular panel format, designed for centralised access control installations. It allows door opening by entering a 4 to 6 digit code previously programmed in an external controller. The Wiegand keypad provides anti-sabotage security by not incorporating the door opening mechanism or exit button connection — these functions are handled by the external controller.

The Skyline format allows this keypad module to be combined with other Skyline modules (video, pushbutton, display, proximity reader) within a single panel frame, creating a fully customised entrance solution. The module clips into the Skyline frame alongside other components.

Key Features

• Wiegand output for external centralised controller
• Anti-sabotage design — no door release or exit button on reader
• 4 to 6 digit PIN code access
• Skyline modular panel format — combinable with other modules
• Compatible with AC-MAX, AC-PLUS and IP AXES controllers
• Selectable Wiegand 4-bit or 8-bit burst output

Technical Specifications

• Authentication: PIN code
• Output protocol: Wiegand (4-bit or 8-bit burst selectable)
• Controller: External required (AC-MAX, AC-PLUS or IP AXES)
• Module size: W format (Skyline)
• Aesthetic range: Skyline
