Fermax Panic Lock Release (PN-512)

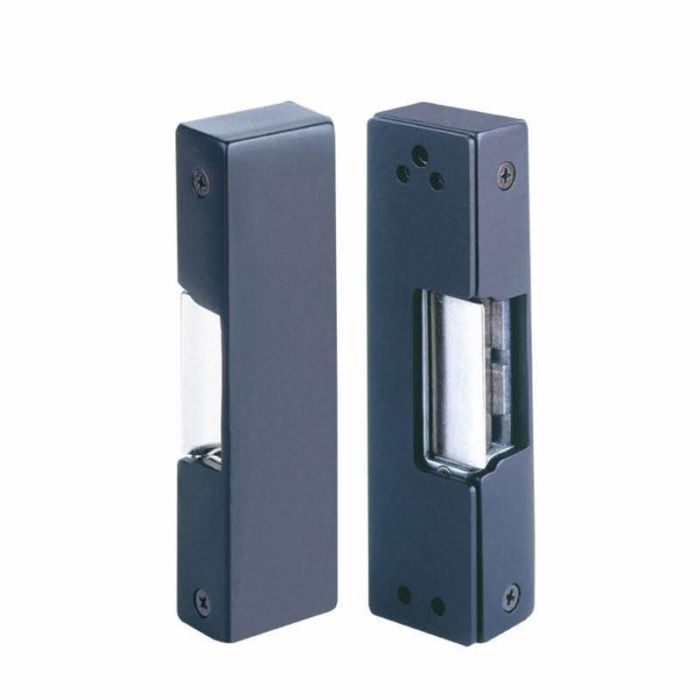

Fermax 3066 Panic Lock Release (PN-512)

Series P

PANIC. Antipanic Series designed to adapt to panic bar lock deadbolt. Surface mounted and reversible.

Reversible (Right DIN or Left DIN)

Lets you open the door from right and left.

Symmetrical

Allows to change hands, maintaining the body symmetry.

DIN Standard

establishes the direction the door opens and designates the type of lock release installed. Looking at the door from the side with the hinges visible:

• If the hinges are to the left of the observer, it is a left DIN lock release
• If the hinges are on the observerÕs right, it is a right DIN

Operating type

There are several types of door lock release mechanisms depending on the type of operation needed. N-512 Inverted type 12Vdc (Inverted Operation and 12 Vdc activation) The door release is automatically unlocked when the 12 Vdc pulse stops.

Technical Specifications:

Consumption:

• N 12Vac: 850mA
• N-412 12Vdc: 150mA
• N-512 12Vdc: 150mA
• N-424 24Vdc: 120mA
