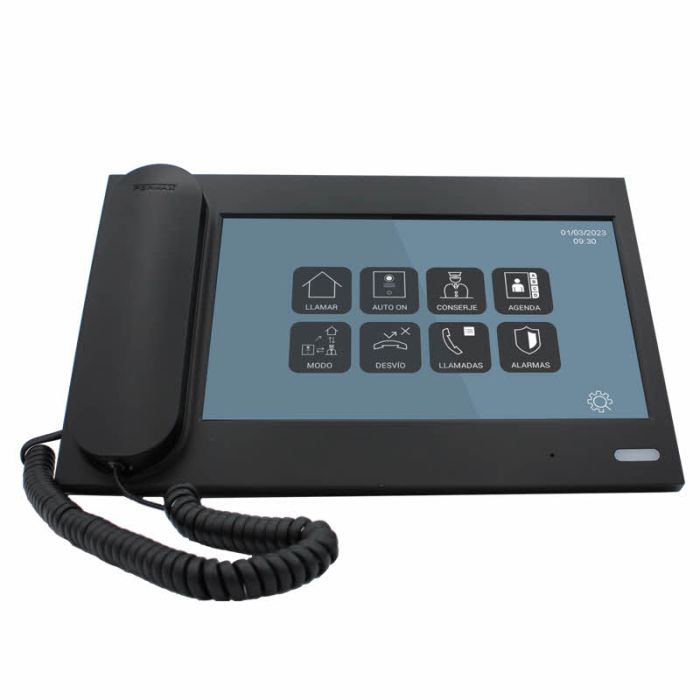

Fermax MEET Desktop Guard Unit with 10 Inch Capacitive Screen

Fermax F-95391 MEET Desktop Guard Unit with 10-Inch Capacitive Screen

The Fermax F-95391 is a desktop-mounted guard unit for the MEET IP door entry system, featuring a 10-inch colour TFT capacitive touch screen and handset. The graphical interface provides intuitive access to all concierge functions including call management, door release, CCTV camera viewing and alarm notifications. The unit supports call divert to the MEET ME app for mobile management.

The guard unit can be configured in block mode or general mode and supports handset or hands-free operation. An SD card slot enables audio and video recording when calls are not answered. Up to 4 additional IP cameras can be viewed via RTSP integration, and up to 4 additional relays can be controlled from the unit.

Key Features

• 10-inch colour TFT capacitive touch screen (1024 x 600 px)
• Handset or hands-free operation
• Desktop mounting
• Call divert to MEET ME app
• Audible and visual alarm notifications
• CCTV IP camera integration via RTSP (ref. 9985)
• Automatic answering function for panels
• Audio and video recording when call not answered (SD card required)
• Up to 128 call logs
• Up to 450 alarm records
• Directory function with alphanumeric call
• Configurable as block mode or general mode
• Control up to 4 additional relays
• View up to 4 additional IP cameras during call
• PoE powered
• SIP VoIP compatible
• Built-in web server for configuration

Dimensions

• 303 x 190 mm (W x H)

Technical Specifications

• Screen: 10-inch colour TFT capacitive touch
• Resolution: 1024 x 600 px
• Audio: Handset or hands-free
• Power supply: PoE
• Mounting: Desktop
• Maximum call logs: 128
• Maximum alarm records: 450
• Standby consumption: 200 mA
• Active consumption: 500 mA
• Working voltage: 12 Vdc or PoE
• Operating temperature: -10 to +55 degrees C
• Humidity: 20-93% (non-condensing)
• Connectivity: Ethernet RJ-45, SD card slot
• System: MEET IP (peer-to-peer)
