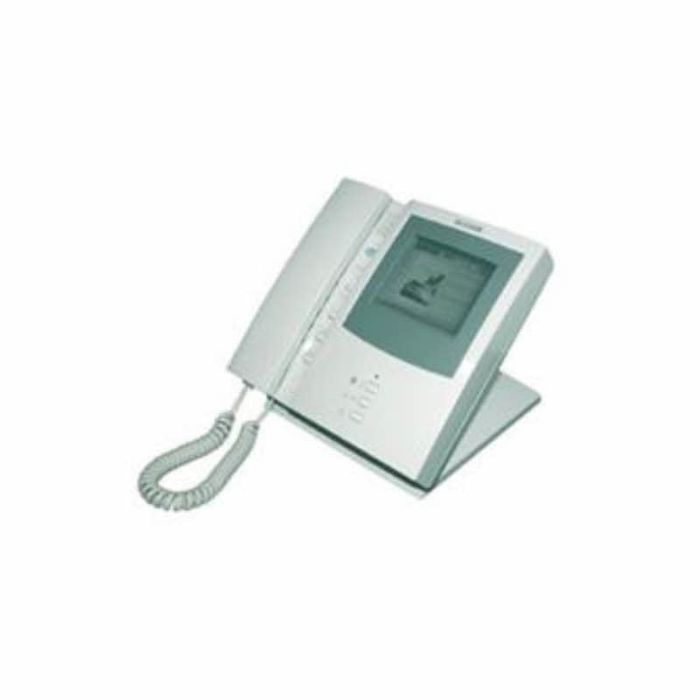

Fermax F-2532 MDS Direct CityMax Desk-Mounted Concierge Guard Unit

The Fermax F-2532 is a desk-mounted concierge and guard unit for the MDS Direct door entry system. It acts as a central communication point between visitors, outdoor panels and residents, enabling the concierge to answer, transfer and manage calls across the entire installation. The unit features an LCD display showing call status, queue information and operating mode, along with a dialling keypad and fast-access function buttons located beneath the handset.

The guard unit supports three operating modes — Day, Mixed and Night — allowing flexible call routing depending on staffing requirements. In Day mode, all panel calls are intercepted by the concierge. In Night mode, panels call apartments directly. Mixed mode allows a combination of both. The unit can communicate with any outdoor panel or apartment, bridge apartment-to-apartment calls, and activate door releases remotely.

Key Features

• Desk-mounted concierge station with LCD display
• Three operating modes: Day, Mixed and Night
• Call queue stores up to 20 missed calls
• RS-485 twisted pair data bus communication
• Supports up to 9,999 apartment addresses
• Supports up to 10 main entrance panels (10-19)
• Supports up to 999 intercom stations
• Apartment-to-apartment call bridging
• Door release activation via blue button
• Automatic last call repeat function
• Handset-based audio with external speaker output
• Wall telephone-type plug connector for easy installation
• Colour-coded telephone wall socket wiring

Technical Specifications

• Voltage: 12 Vdc +/- 10%
• Current draw: 250 mA
• Operating temperature: 10 to 60 degrees C
• Communication bus: RS-485 (twisted pair, Sa/Sb)
• System: MDS Direct
• Apartment address range: 1 to 9,999
• Maximum main entrance panels: 10
• Maximum intercom stations: 999
• Call queue capacity: 20 calls
• Compatibility: MDS-Direct door stations V2.0 (V2.8 for mixed mode), MDS-City V1.1 or higher
